Canon imagePROGRAF iPF815 - Removing the Roll Holder from Rolls

Removing the Roll Holder from Rolls

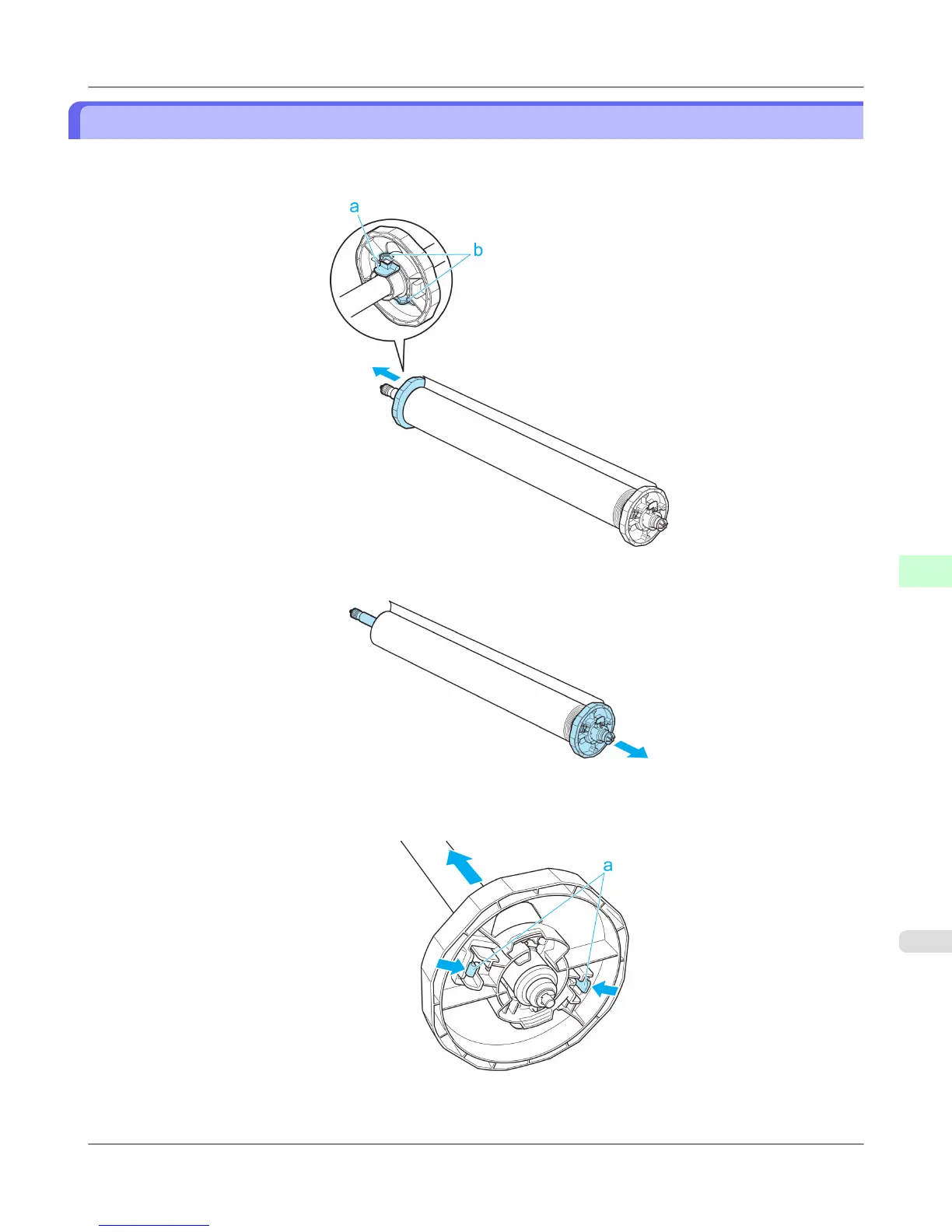

1. Lift
the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at the position indica-
ted (b), remove it from the Roll Holder.
2. Remove the Roll Holder from the roll.
3. When removing attachments, push the tips (a) in as you remove the attachment.
• 3-Inch Paper Core Attachment #1 ( Roll Holder side)
