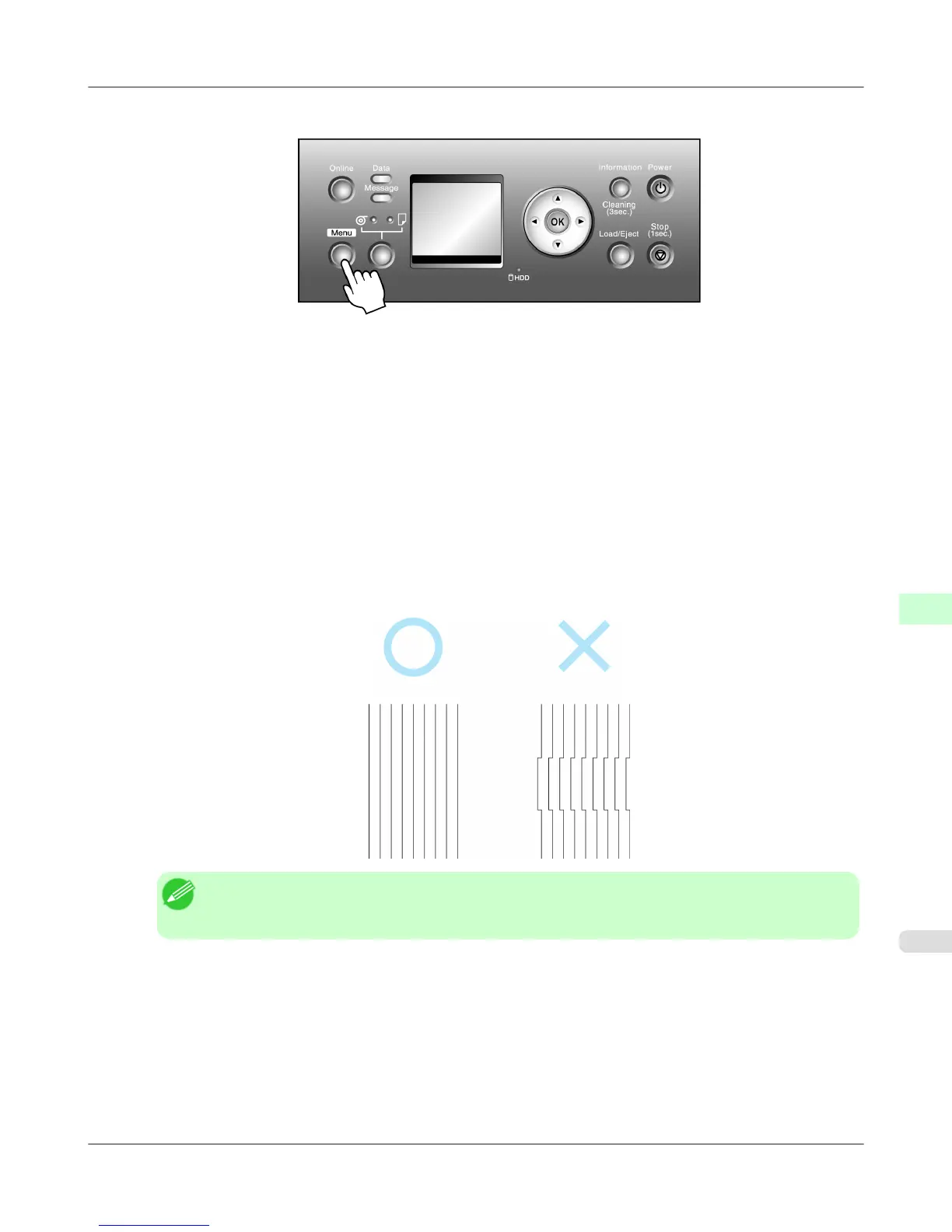

2. Press the Menu button to display MAIN MENU.
3. Press or to select Adjust Printer, and then press the button.
4. Press or to select Manual Head Adj, and then press the button.
5. Press or to select Yes, and then press the OK button.
A test pattern is printed for printhead adjustment.
6. Press or to select D, and then press the button.
7. Press or to select D-1, and then press the button.
8. Examine test pattern D-1 for printhead adjustment and determine the number of the pattern with straight lines.
Note
If
lines seem straightest in two patterns but you cannot decide which one is better, choose an inter-
mediate value. For example, choose 11 if you cannot decide whether pattern 10 or 12 is better.
9. Press or to select the pattern number, and then press the OK button.
10. Repeat steps 7 and 9 to specify the adjustment value for D-2 to D-5 and D-7 to D-11.
11. Press the button.
12. Press or to select Register Setting, and then press the button.
Adjustments for Better Print Quality
>
Adjusting the Printhead
>
iPF815 Manual Straightening of Lines and Colors (Manual Head Adj)
8
671
