Canon imagePROGRAF iPF815 User Manual

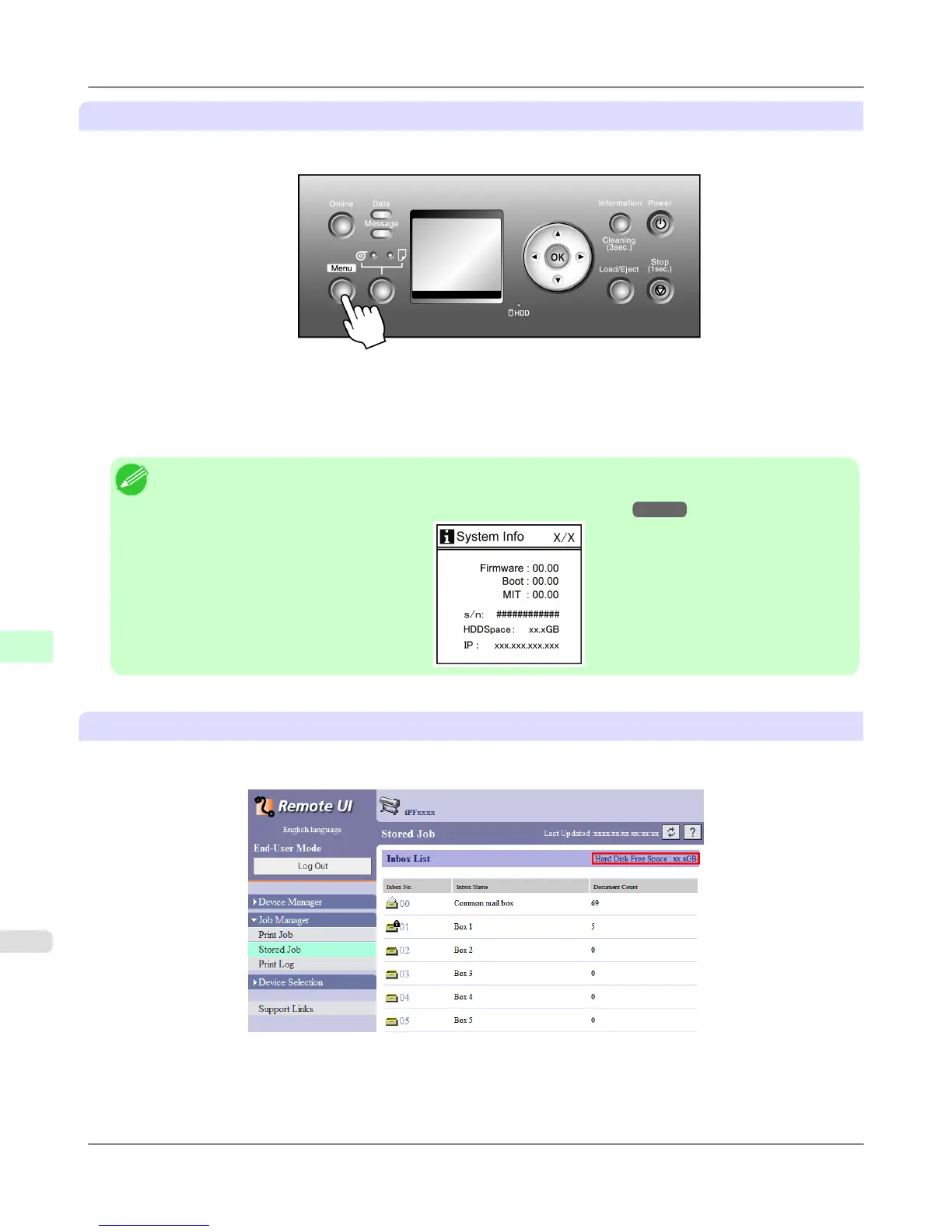

Using the Control Panel
1. Press the Menu button to display MAIN MENU.
2. Press ▲ or ▼ to select Job Management, and then press the ▶ button.
3. Press ▲ or ▼ to select HDD Information, and then press the ▶ button.
Note
• You
can also check the available hard disk space in the submenu indicating printer information. Press the
Information button to display the submenus. (See "Submenu Display.")
→P.735
Using RemoteUI
To view the box list, select Stored Job in Job Management. On the Stored Job page, the free hard disk space is shown in
the upper-right corner when boxes are listed.
For details, refer to the RemoteUI help.
Printer Parts
> Hard Disk >
Checking the Free Hard Disk Space iPF815
9
748

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
