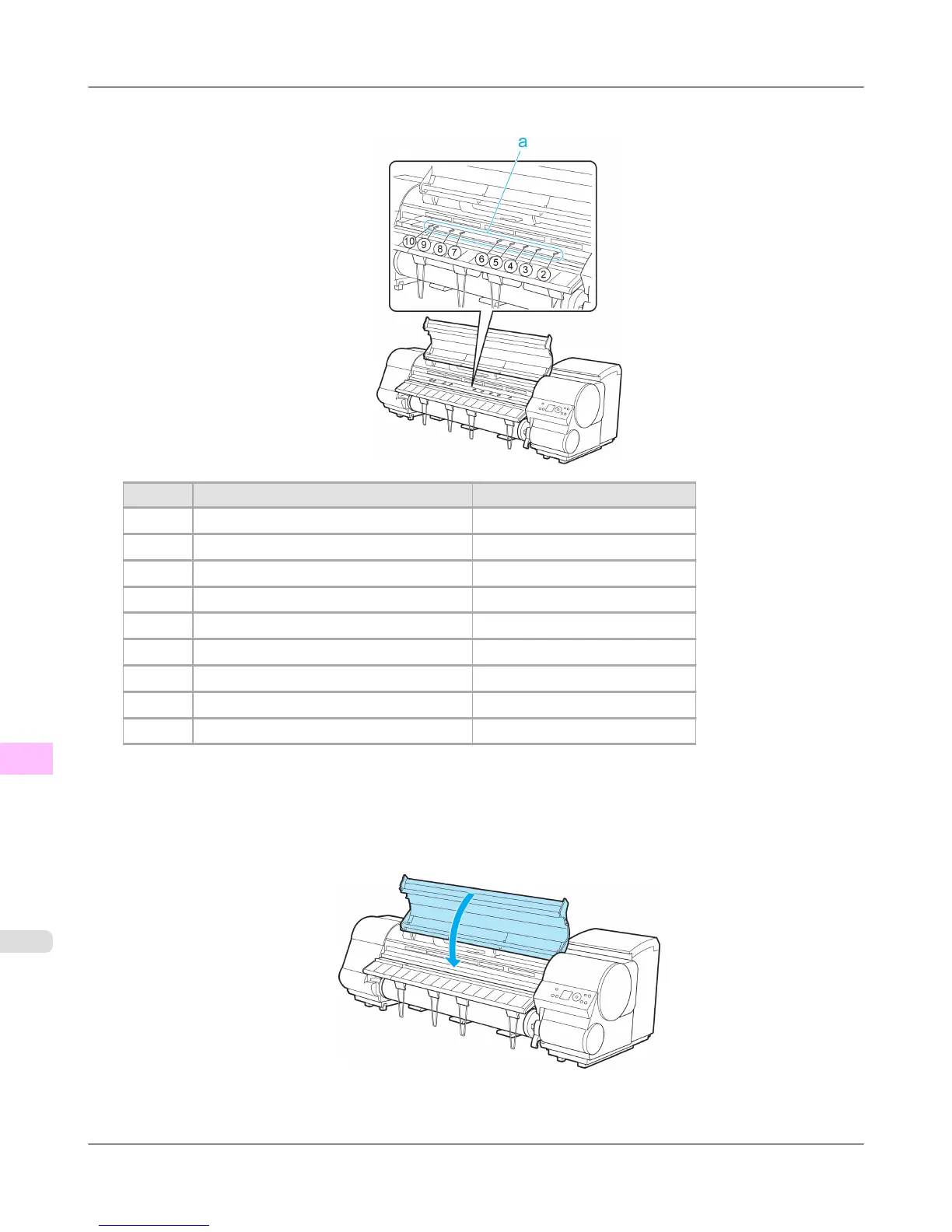

5. Refer to the following table to confirm the number on the Platen that corresponds to the size of paper for printing.
Number Paper Size Dimensions
2 10"x12" / 8"x10" 254 mm (10 in.)
3 14"x17" 355 mm (14 in.)
4 17-in. Roll (431.8mm) / ANSI C 432 mm (17 in.)
5 JIS B2 / JIS B3 515 mm (20 in.)
6 ISO A1 / ISO A2 / 20"x24" 594 mm (23 in.) / 610 mm (24 in.)
7 ISO A0 / ISO A1 841 mm (33 in.)
8 36"x48" (ARCH E) / 24"x36" (ARCH D) 914 mm (36 in.)
9 JIS B0 / JIS B1 1030 mm (40.5 in.)
10 Poster 42"x60" 1,067 mm (42 in.)
6. Using
the back of the Cleaning Brush, move the Switch to the side opposite ●, corresponding to the size of the paper
for printing.
In this case, note that you will move the switch in the opposite direction from the direction in step 4.
7. Close the Top Cover.
Troubleshooting
> Problems with the printing quality >
Setting the Blue Switch on the Platen iPF815
12
874

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
