CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-13
1. Multifeeder Pickup Assembly (no paper, pickup delay jam)
If copy paper does not reach the pre-registration roller paper sensor within a specific period of
time in multifeeder mode, the condition will be identified as the absence of paper; the machine will
stop the main motor in about 1.5 sec, and indicate the Add Paper message.
If the pre-registration roller paper sensor detects copy paper during this 1.5 sec period (ap-
proximate), the machine will identify the condition as a pickup delay jam, and flash the Jam indica-
tor.

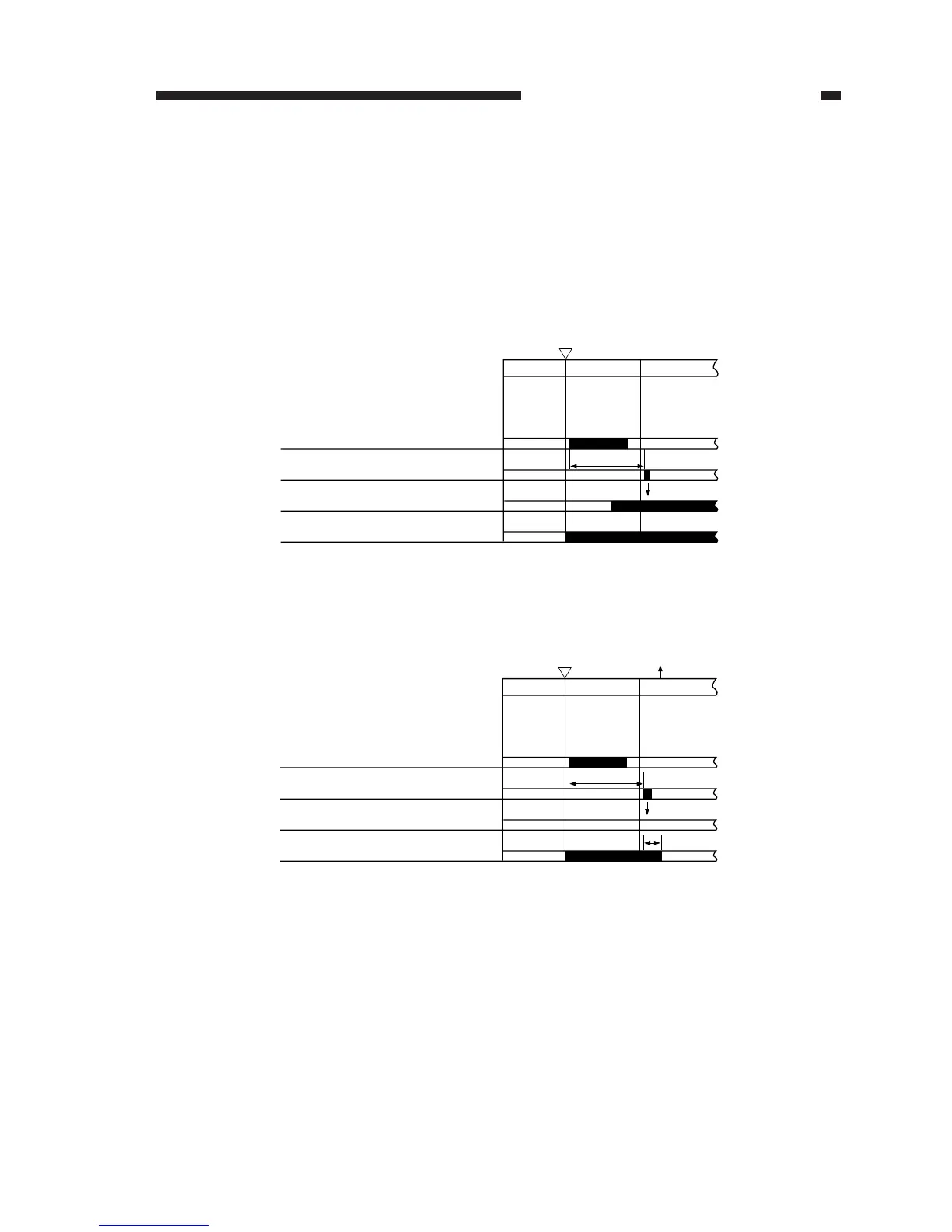

Figure 5-115 (normal)
Figure 5-116 (no paper)
Copy Start key
ON
STBY INTR SCFW
Pickup clutch solenoid (SL1)
Jam check
Pre-registration roller paper
sensor (Q751)
Main motor (M1)
2.6sec
Normal
Copy Start key
ON
STBY INTR SCFW
Pickup clutch solenoid (SL1)
Jam check
Pre-registration roller paper
sensor (Q751)
Main motor (M1)
2.6sec
No paper
P indication
1.5sec
