Canon PC920 - ADF Feeding System Procedures

CHAPTER 8 ADF
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 8-26

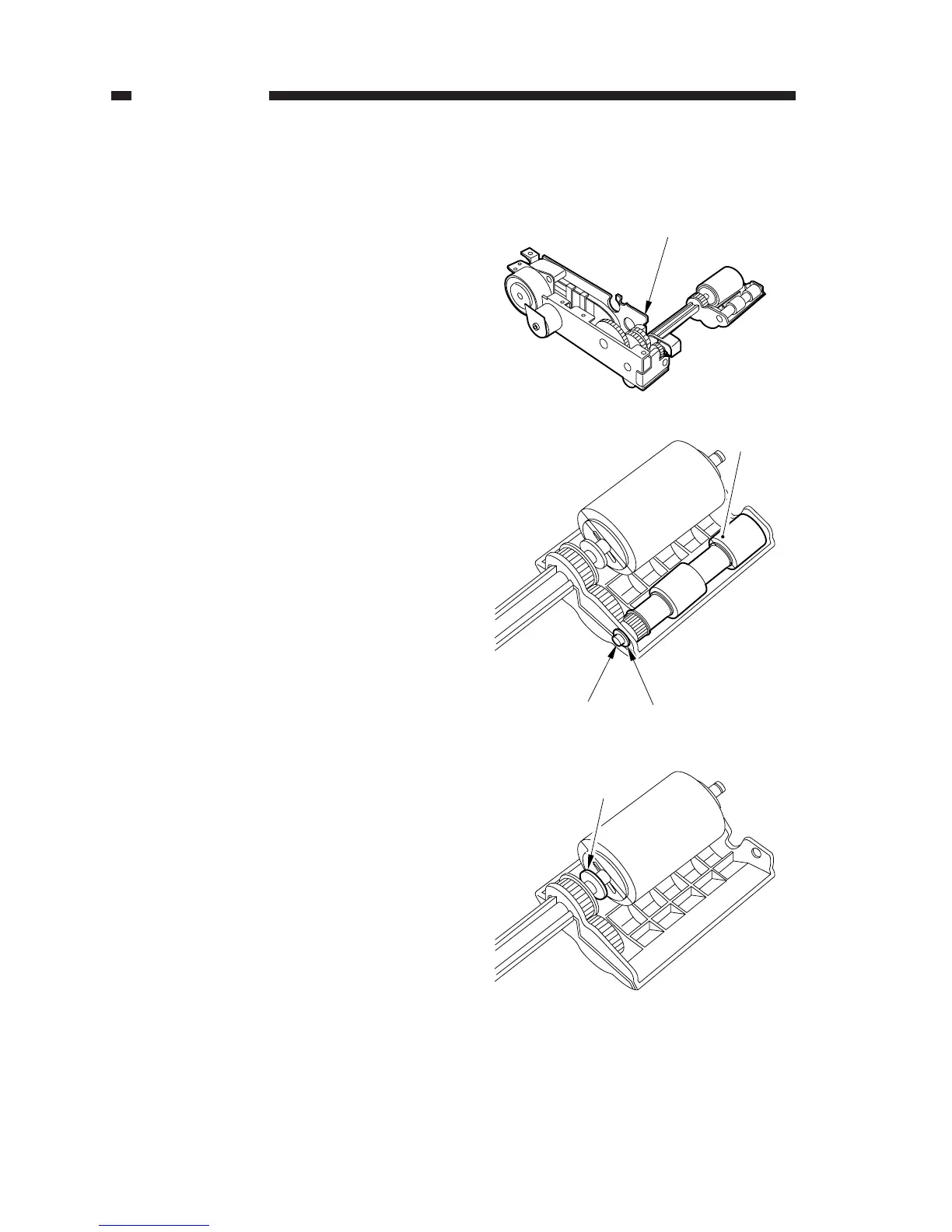

D. Feeding System
1. Pickup Roller
1) Remove the drive unit [1].
(See “C.1. Drive Unit.”)
2) Remove the E-ring [2], and remove the
shaft [3]; then, detach the pickup roller 1
[4].
3) Remove the stop ring [5].
Figure 8-216
Figure 8-217
Figure 8-218
[1]
[5]
[2]
[3]
[4]
