Canon PC920 - Single-feeder Assembly Procedures

CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-31

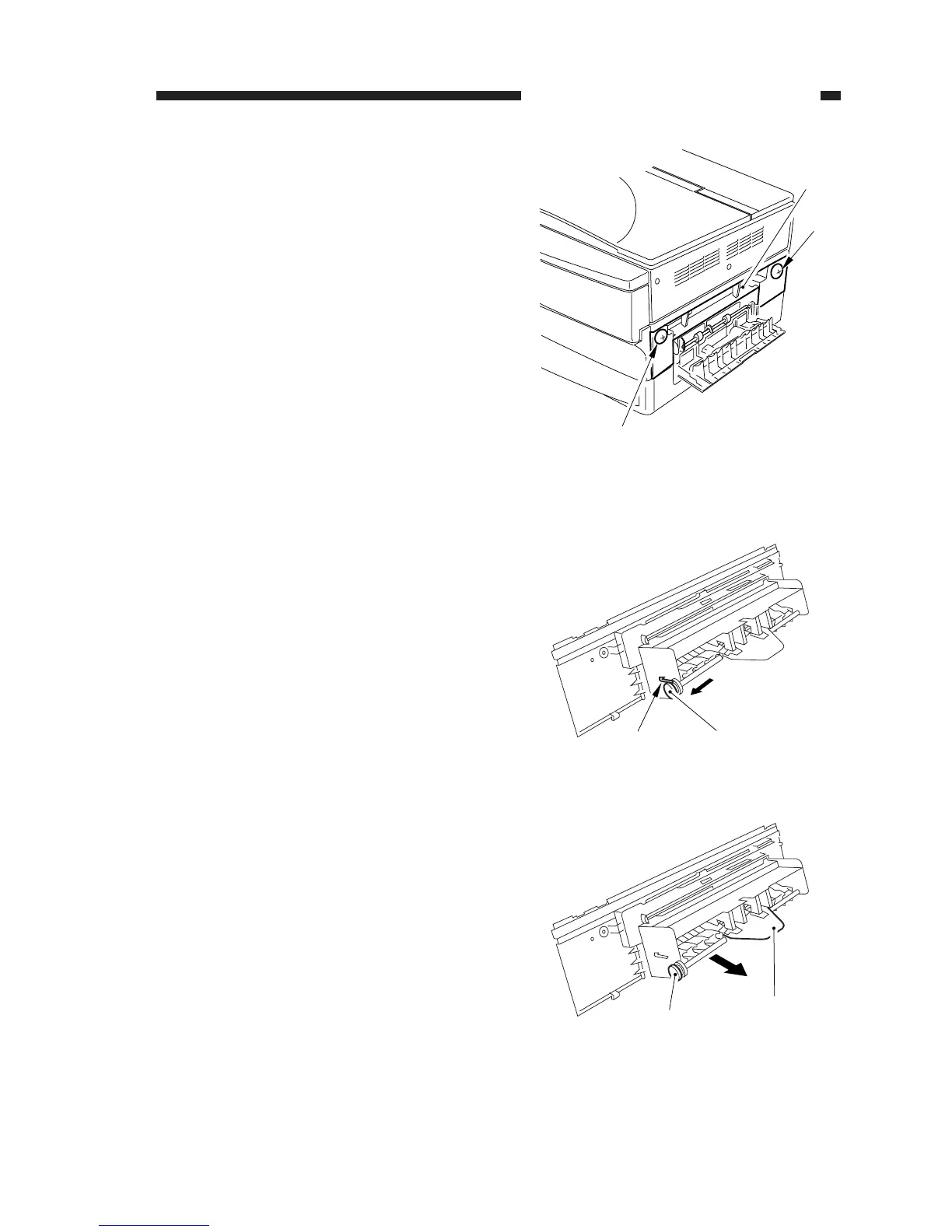

Figure 5-226
[1]
[2]
[1]
C. Single-feeder Assembly
1. Removing the Single-feeder Unit
1) Open the right door.
2) Remove the two screws [1], and remove
the single-feeder unit [2].
Figure 5-227
Figure 5-228
2. Removing the Single-feeder
Pickup Roller
1) Remove the single-feeder unit.
(See 1. “Removing the Single-feeder
Unit.”)
2) Push up the stopper lever [1], and move
the gear [2] of the single-feeder pickup
roller assembly in the direction of the ar-
row.
3) Remove the single-feeder pickup roller
assembly [4] together with the paper
guide plate [3].
[1]
[2]
[4]
[3]
