Canon PC920 - Cross Section

CHAPTER 1 GENERAL DESCRIPTION
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 1-13
[1] No. 3 mirror
[2] No. 2 mirror
[3] No. 1 mirror
[4] Scanning lamp
[5] Heat exhaust fan
[6] Copyboard glass
[7] Side blanking lamp
[8] Lens
[9] Primary charging roller
[10] No. 6 mirror
[11] Cartridge
[12] No. 4 mirror
[13] No. 5 mirror
[14] Multifeeder tray
[15] Vertical path roller
[16] Multifeeder pickup roller
[17] Cassette pickup roller
[18] Registration roller
[19] Developing cylinder
[20] Photosensitive drum
[21] Transfer roller
[22] Feed belt
[23] Cassette
[24] Fixing upper unit
[25] Fixing lower roller
[26] Cleaning roller
[27] Delivery roller
[28] Copy tray
[29] Single-feeder pickup roller
[1]
[28] [27] [26] [25] [24] [23] [22] [21] [20] [19] [18] [17] [29][16] [15]
[2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14]
B. Cross Section
1. Body

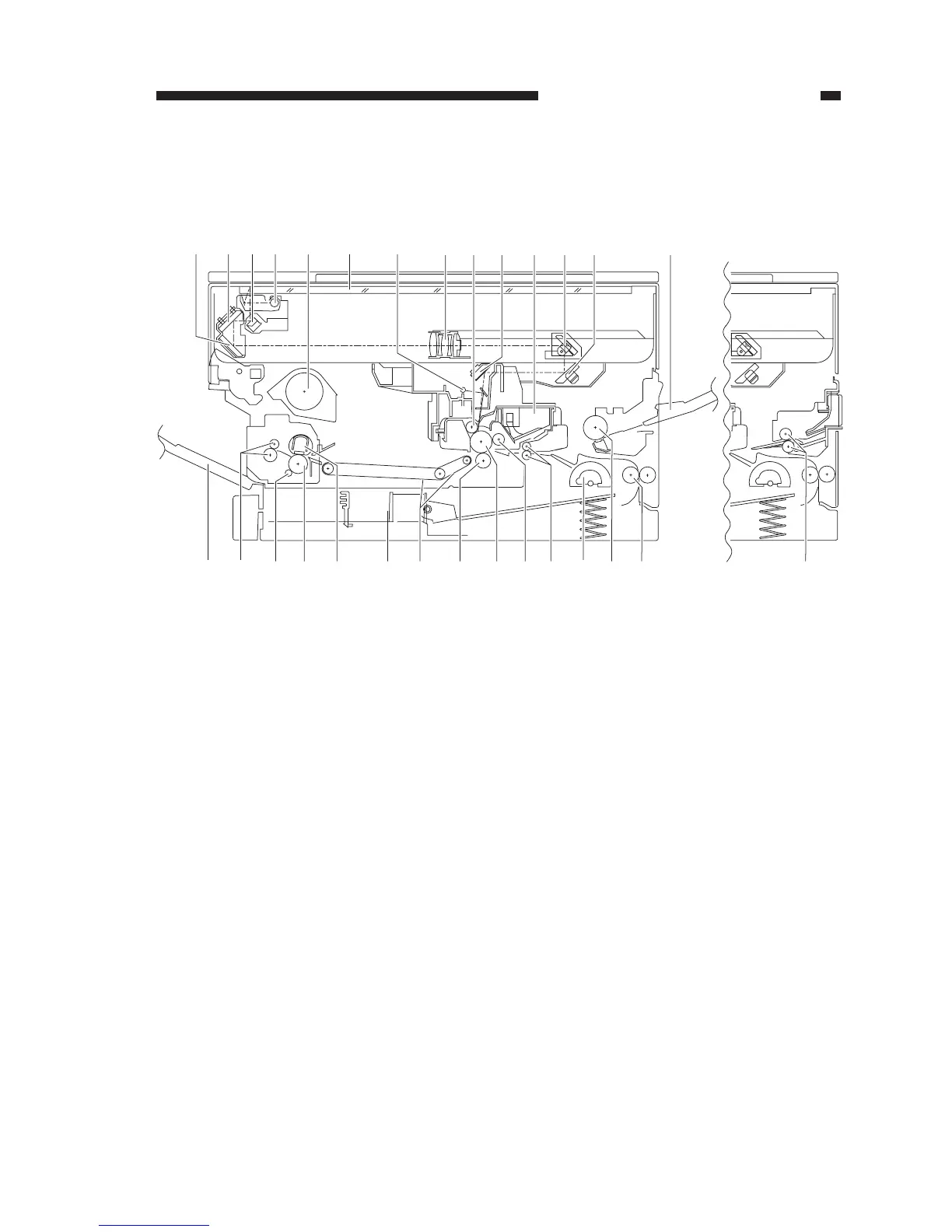

Figure 1-306
