Canon PC920 - ADF Drive System Disassembly

CHAPTER 8 ADF
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
8-23

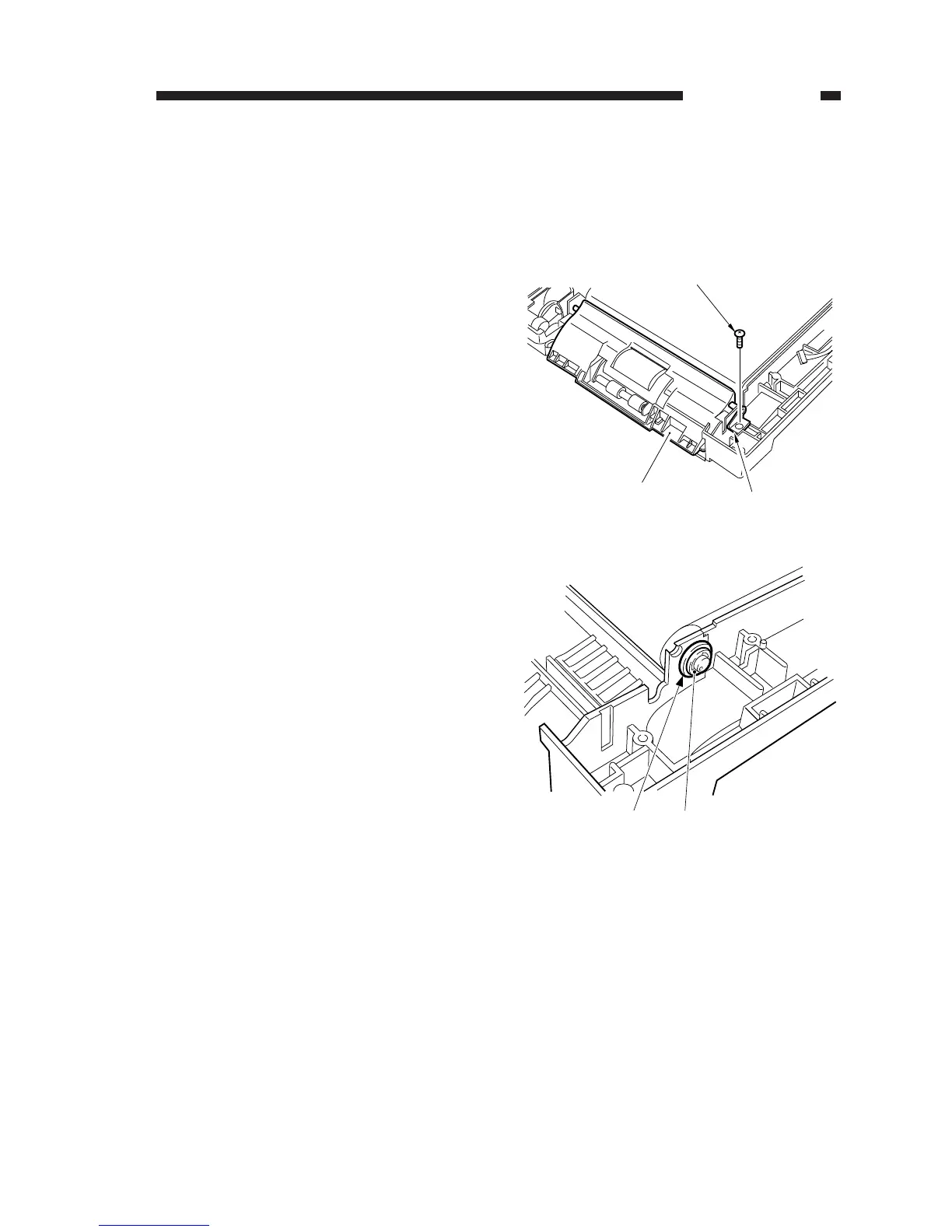

C. Drive System
1. Drive Unit
1) Remove the lower cover.
(See “B. External Covers.”)
2) Remove the screw [1] and the bushing [2];
then, remove the pickup roller cover [3].
3) Remove the E-ring [4], and remove the
bearing [5].
Figure 8-210
Figure 8-211
[1]
[2]
[3]
[4]
[5]
