Canon PC920 - Scanner Drive Assembly

CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-13

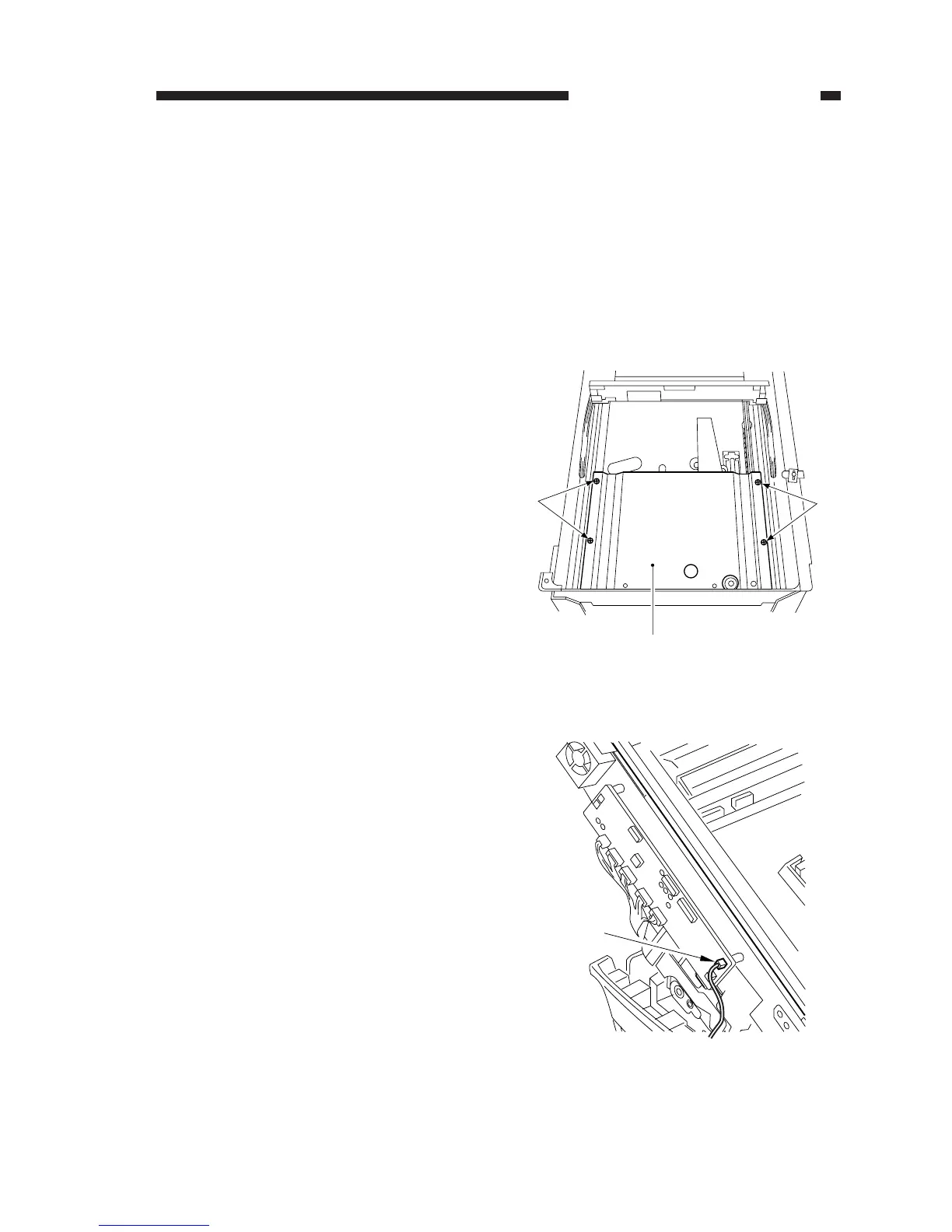

Figure 3-301
Figure 3-302
[1]
[1]
[2]
[3]
A. Scanner Drive Assembly
1. Removing the Scanner/Lens Drive
Motor
1) Remove the front lower cover.
(See Chapter 7.III.A.2.“Removing the
Front Lower Cover.”)
2) Remove the copyboard glass.
(See Chapter 7.III.C.1.“Removing the
Copyboard Glass.”)
3) Remove the four screws [1], and detach
the lens cover [2].
4) Disconnect the connector (J110) [3] from
the DC controller PCB.
