CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-14
Figure 3-303
Figure 3-304
[4]
[4]
[5]

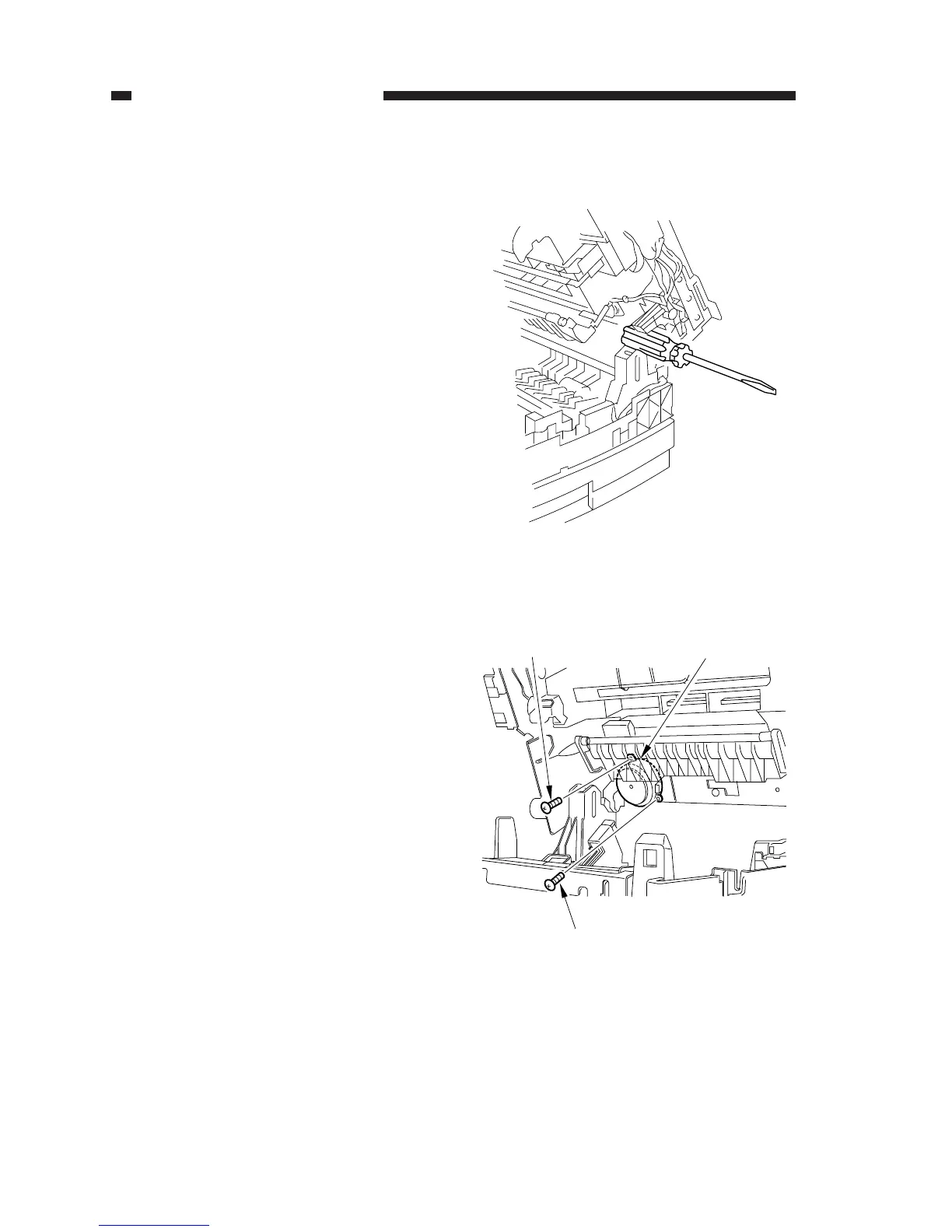

5) Open the machine’s top unit farther, and
hold it in position using the handle (about
30 mm in diameter) of a screwdriver.
6) Remove the machine’s two fixing screws
[4] from the scanner/lens drive motor [5].
