CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-15

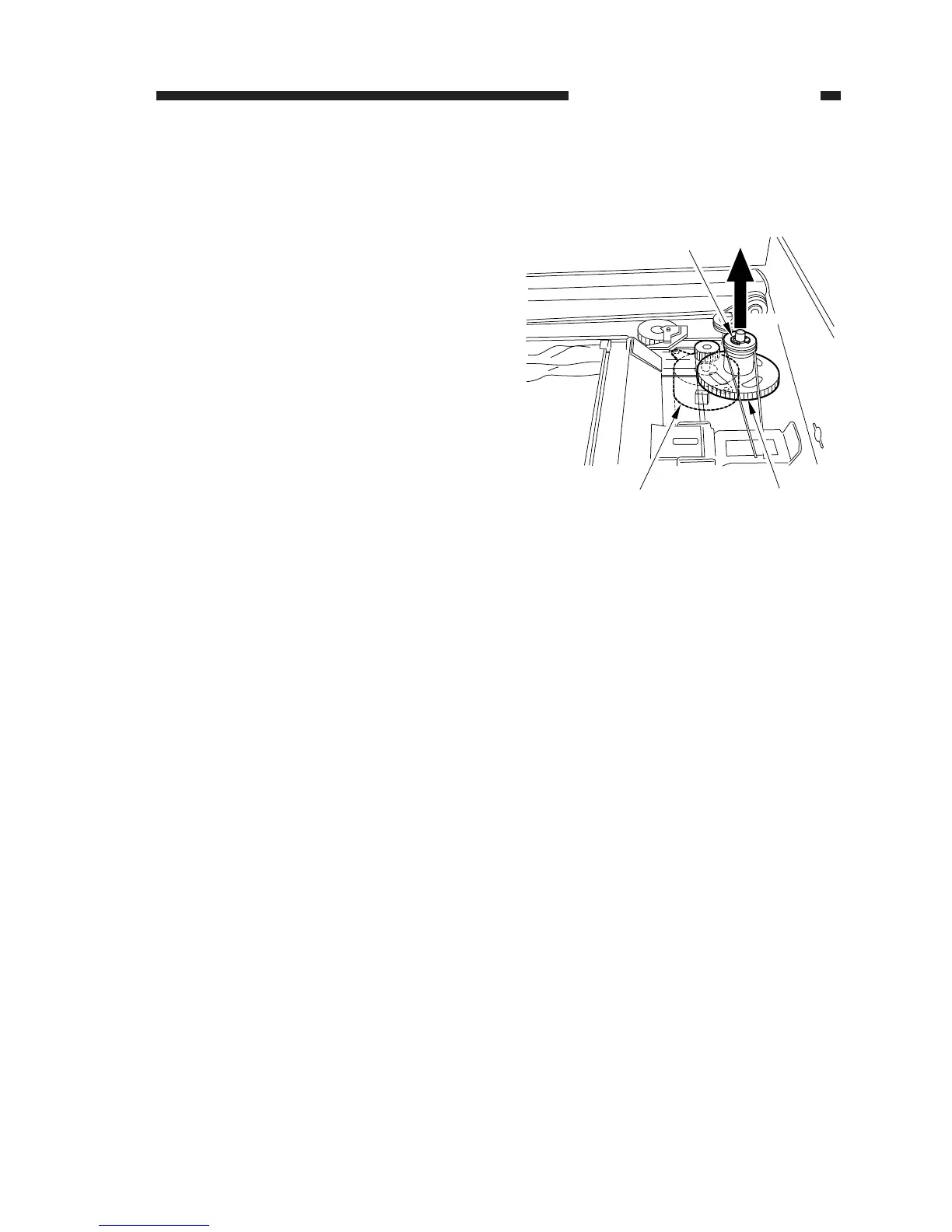

Figure 3-305
[6]
[7]
[5]
Lift.
7) Free the top unit (by removing the screw-
driver), and close the top unit.
8) Remove the E-ring [6]; then, lift the cable
drive pulley [7] slightly, and detach the
scanner/lens drive motor [5].
To Next Page
