CHAPTER 11 TROUBLESHOOTING
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
11-30
B. ADF
1. Adjusting the Original Stop Position
Adjust the original stop position in the following order:
1. Correcting original skew
2. Adjusting the rear/front original stop position
3. Adjusting the original leading edge stop position
2. Correcting Original Skew
1) Obtain a sheet of A4 or LTR white copy paper, and draw two lines as indicated.
• The sheet will be used as a test sheet.

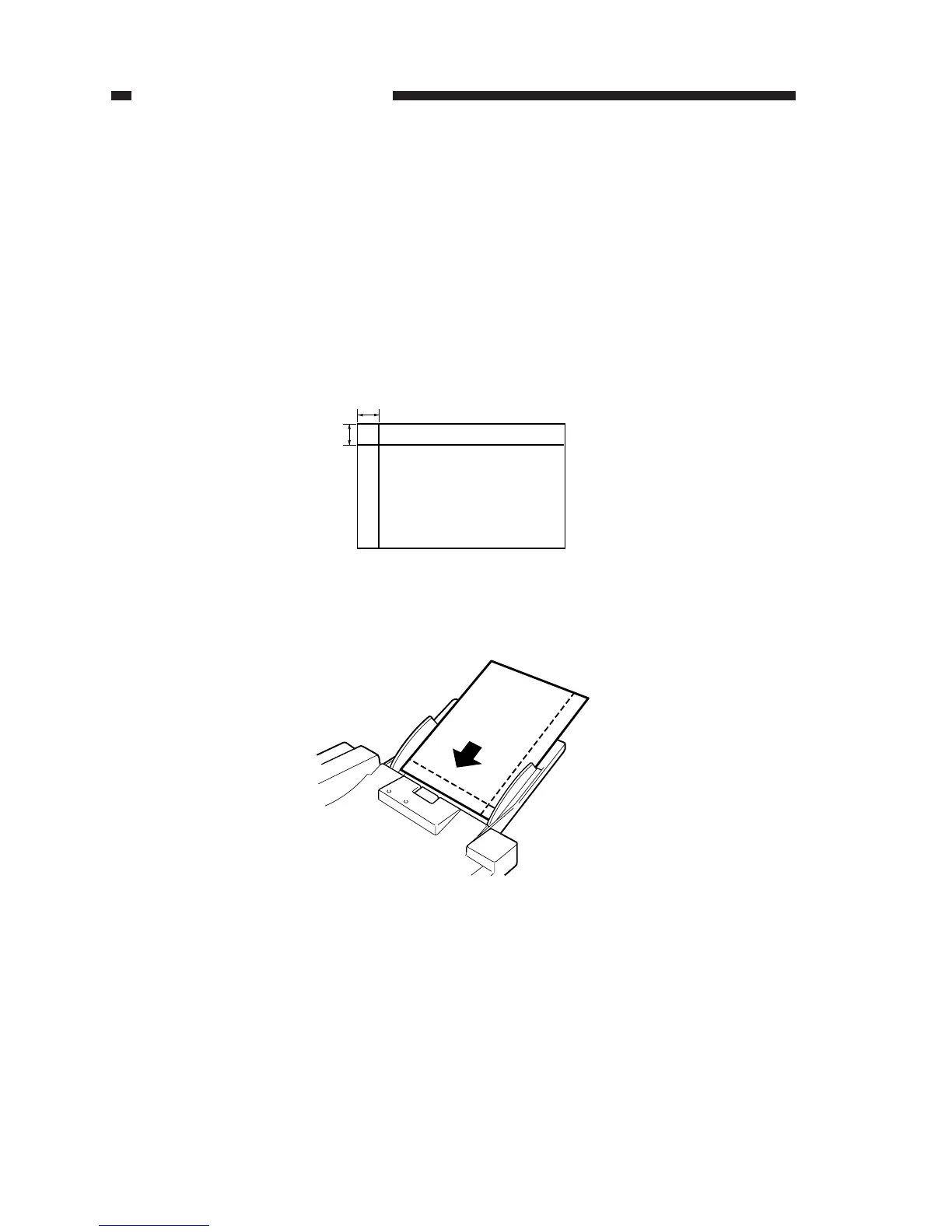

Figure 11-244
2) Turn on the machine, and place the test sheet prepared in step 1) on the original tray.
Figure 11-245
10mm
10mm
A4/LTR copy papper
