11-31
3) Press the Copy Start key to make a copy.
4) Check to make sure that the difference between L1 and L2 on the copy is 1.8 mm (standard) or
less.

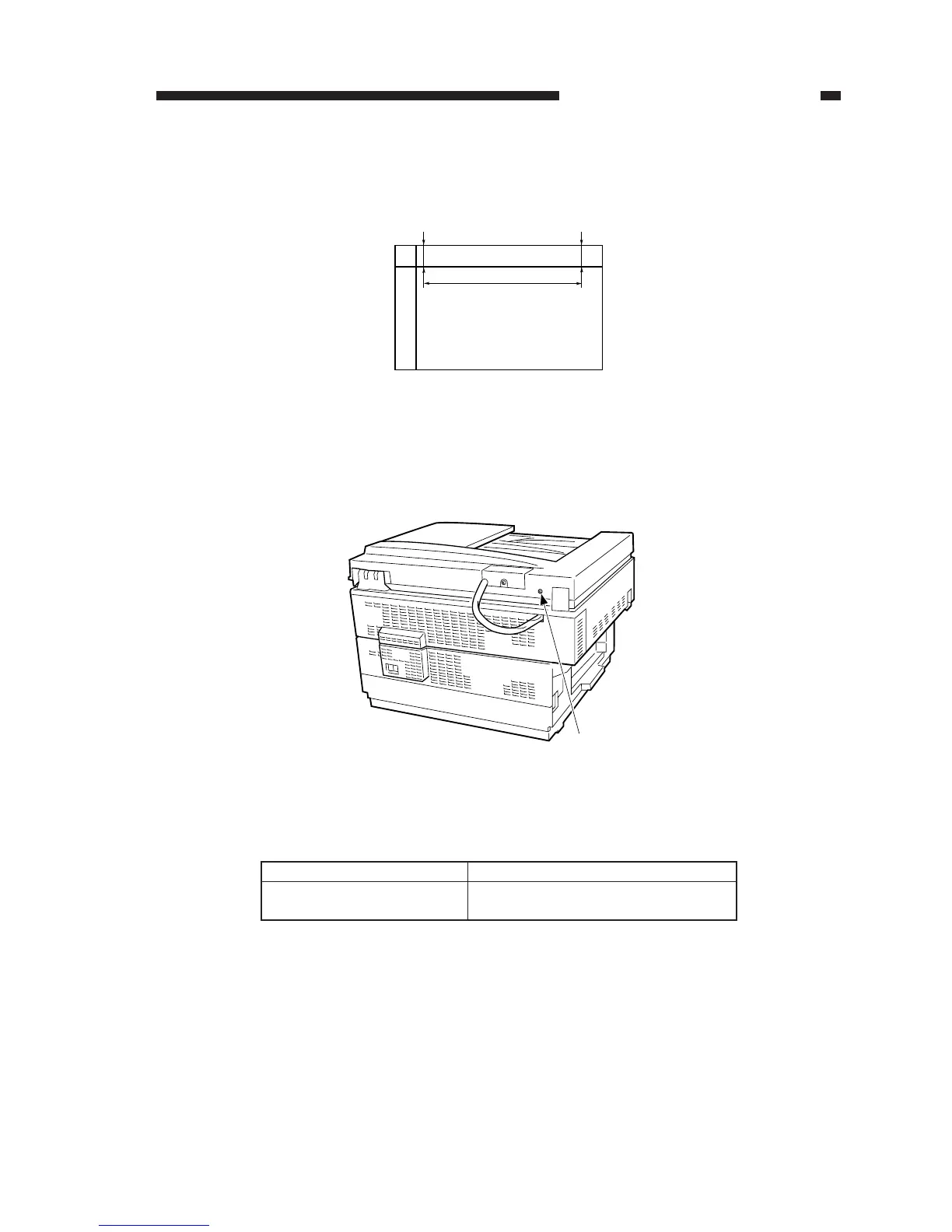

Figure 11-246
5) If the difference is not as specified, turn the adjusting screw found to the side of the left hinge
unit to make adjustments.
Figure 11-247
Relationship between Adjusting Screw and L1/L2
Table 11-203
Direction of turn
Clockwise
Counterclockwise
Relationship between L1 and L2
L1 > L2
L1 < L2
Copy image
L1 L2
280mm
L1-L2=0 ± 1.8mm
Adjusting screw
