CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-33

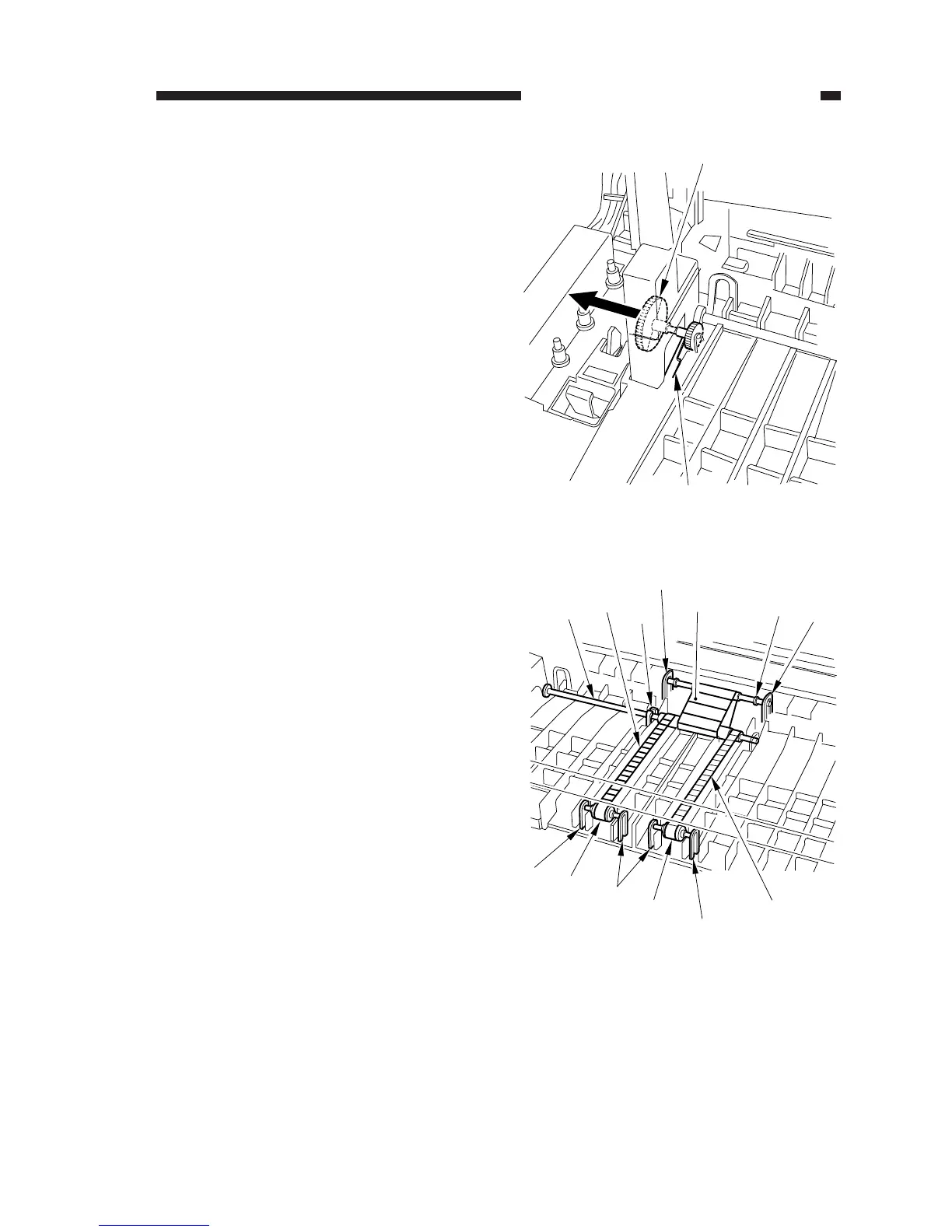

Figure 5-230
Figure 5-231
[2]
[1]
[3]
[3]
[3]
[3]
[3]
[3]
[4]
[4]
[4]
[4]
[5]
[5]
[5]
D. Feeding Assembly
1. Detaching the Feed Belt
1) Open the machine’s top unit.
2) Push down the stopper [1], and remove
the gear [2].
3) While freeing the claw [3], detach the four
shafts [4]; then, detach the feed belt [5].
