CHAPTER 11 TROUBLESHOOTING
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
11-83
E. ADF
Description
Delivery paper detection
Registration roller paper detection
Original placement detection
ADF open/close switch
Belt motor
Pickup motor
Controls sequence of operations
Symbol
[1]
Name
Photointerrupter
Microswitch
Motor
ADF controller
PCB
Notation
PI1
PI2
PI3
MS1
M1
M2
Remarks
PS
M2
PI3
PI2
M1
PI1
MS1
[1]
M

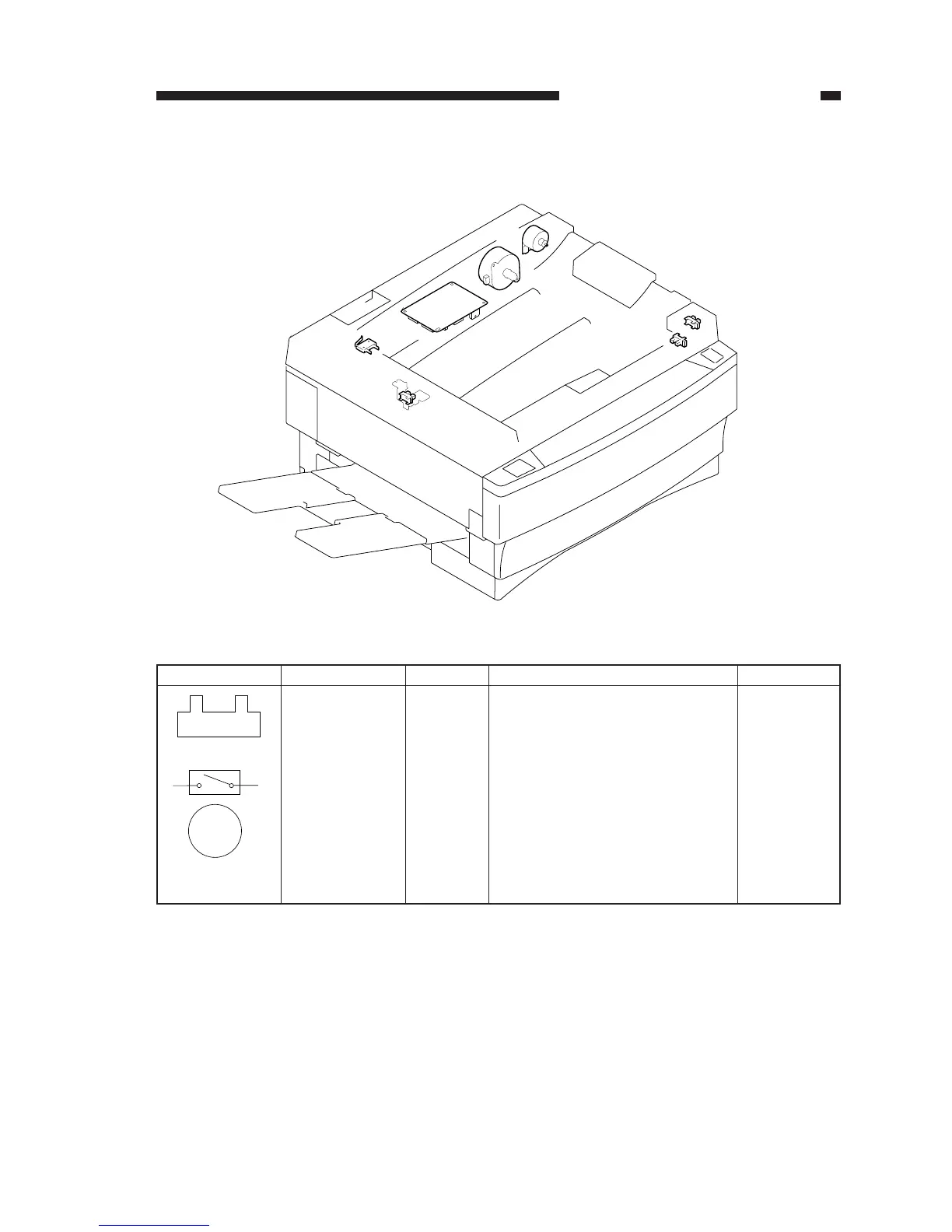

Figure 11-605
