Canon PC920 - Registration Roller Assembly Procedures

CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 5-34

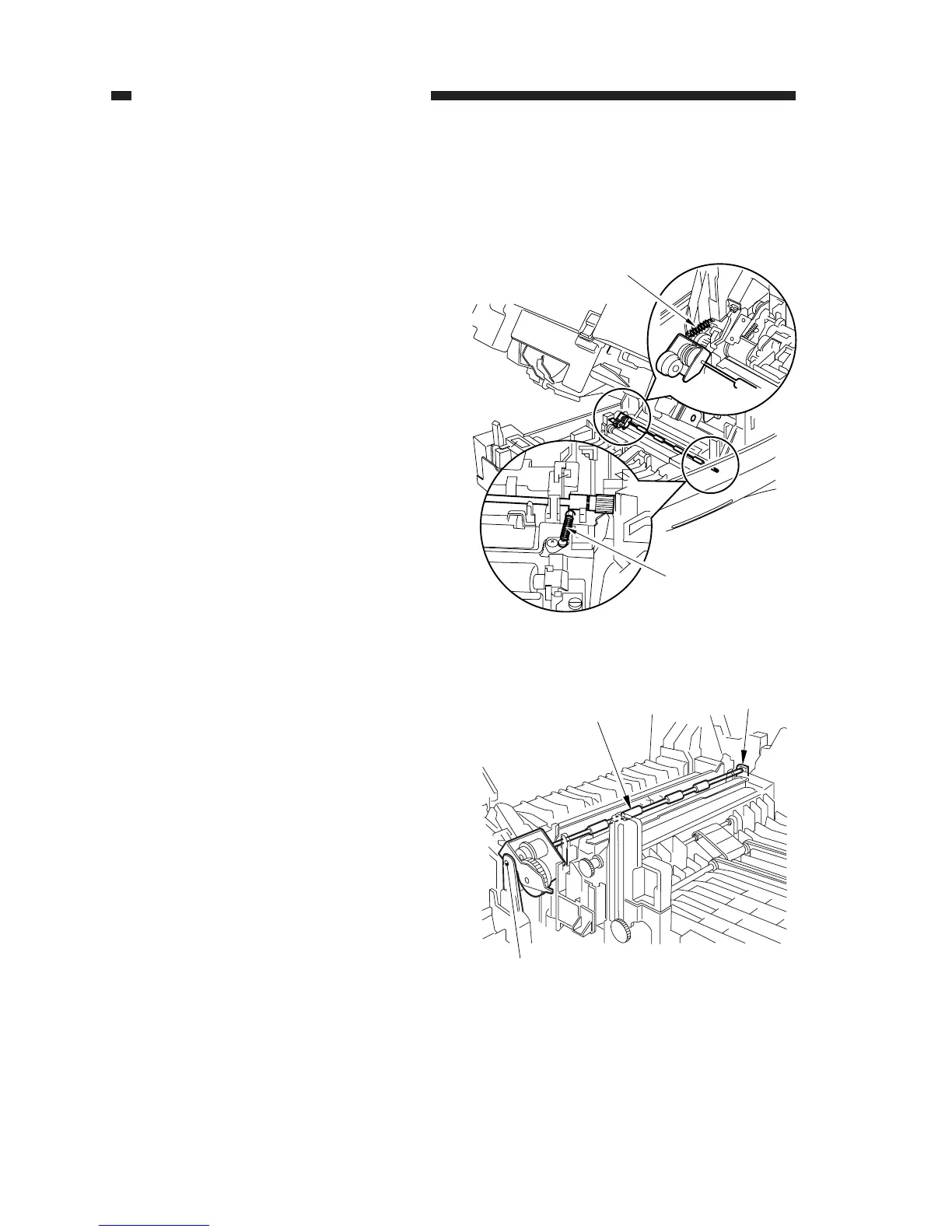

Figure 5-233
[3]
[2]
[2]
Figure 5-232
[1]
[1]
E. Registration Roller
Assembly
1. Removing the Registration Roller
Unit
1) Open the machine’s top unit.
2) Remove the spring [1] (front, rear).
3) Remove the two bushings [2] and remove
the registration roller lower unit [3].
