CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-35
Figure 5-234
Figure 5-235
[1]
[2]
[3]
[4]

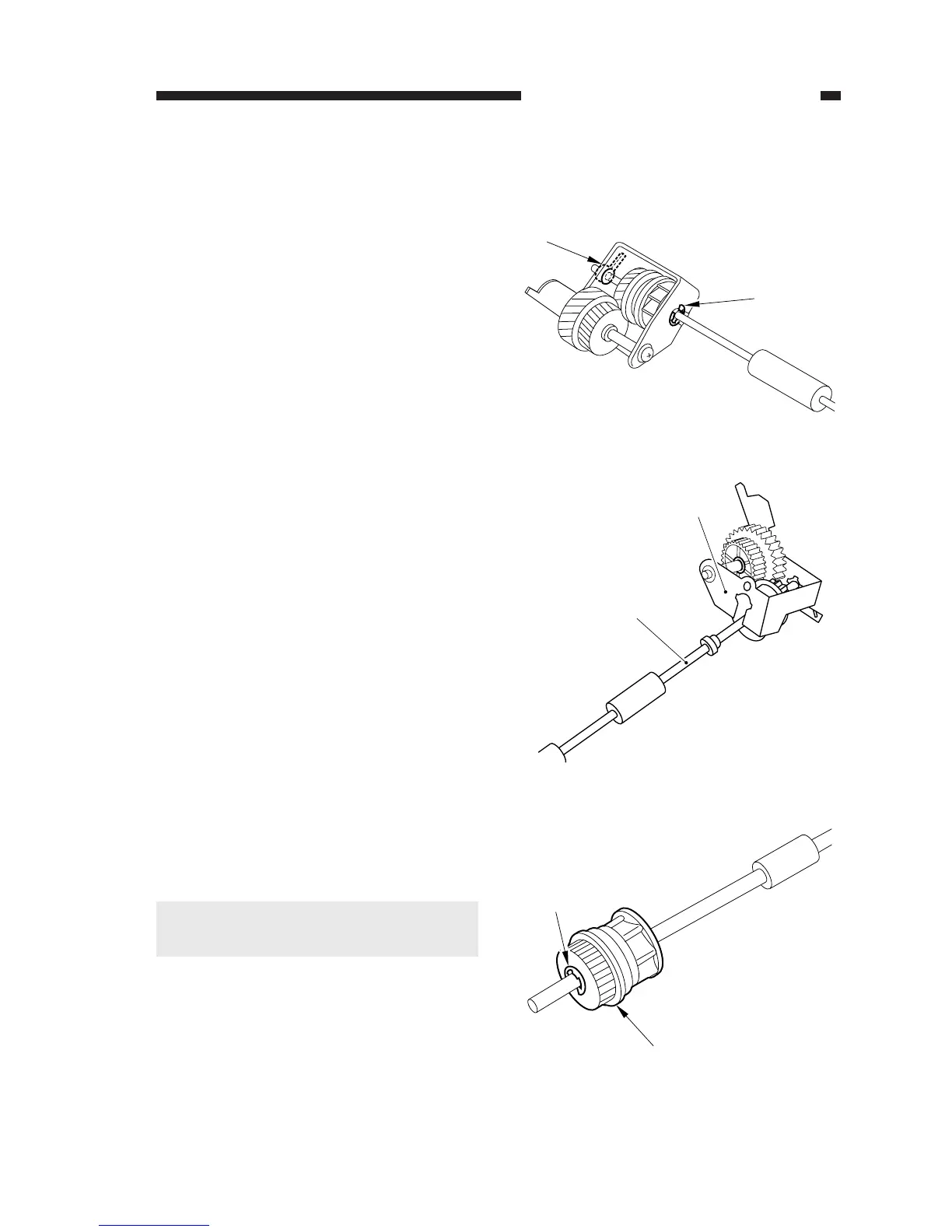

2. Removing the Registration Roller
Clutch
1) Remove the registration roller unit.
(See 1. “Removing the Registration
Roller Unit.”)
2) Remove the bushing [1] and the E-ring
[2].
3) While shifting down the registration roller
[3], detach it from the gear unit [4].
Figure 5-236
4) Remove the E-ring [5], and detach the
registration roller clutch [6].
Caution:
The clutch has a pin. Take care not to
lose it when removing the clutch.
[5]
[6]
To Next Page
