CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-16

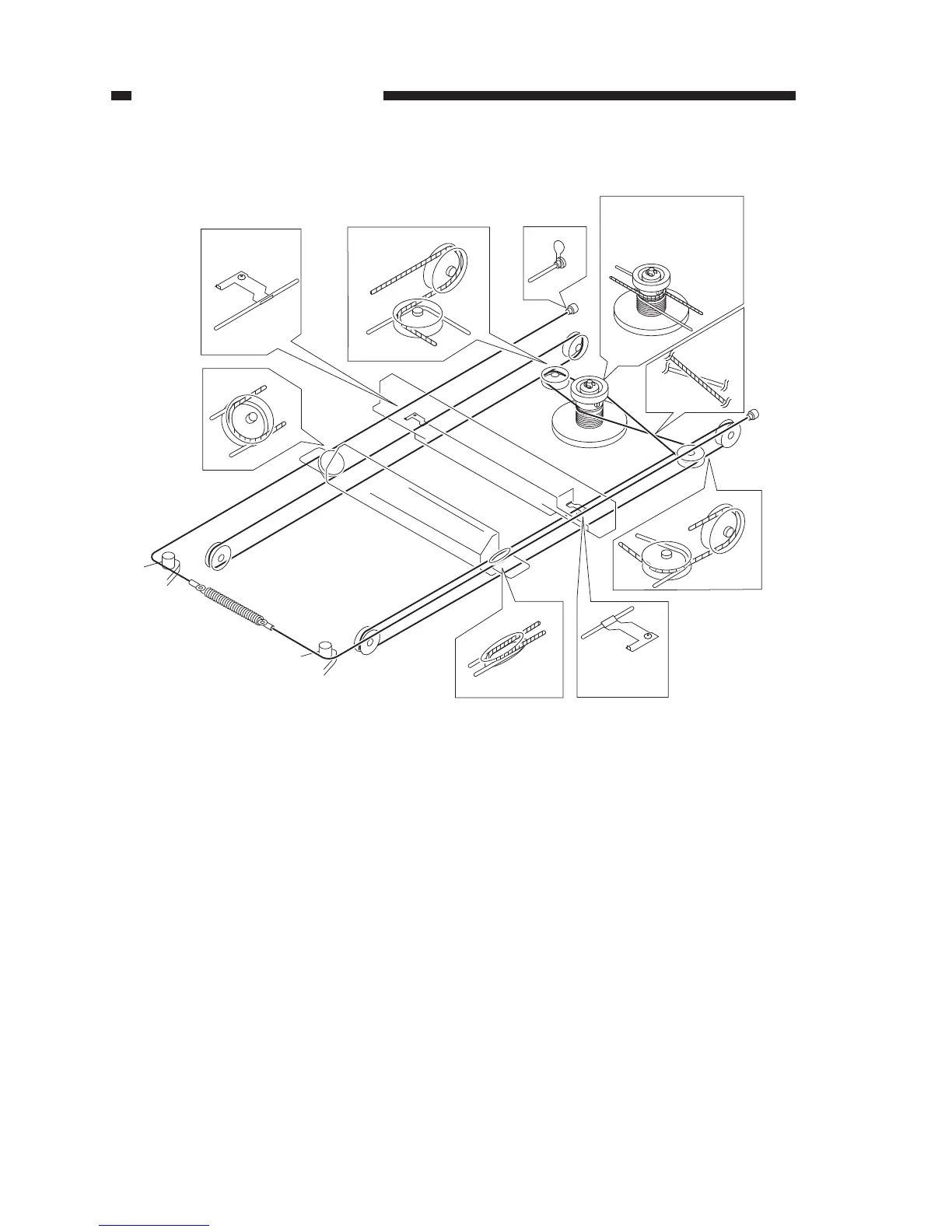

Figure 3-306
Wind 1.5 times.
(black cable)
Wind 7.5 times.
(silver-colored cable)
2. Outline of the Scanner Drive Cable
