CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-17

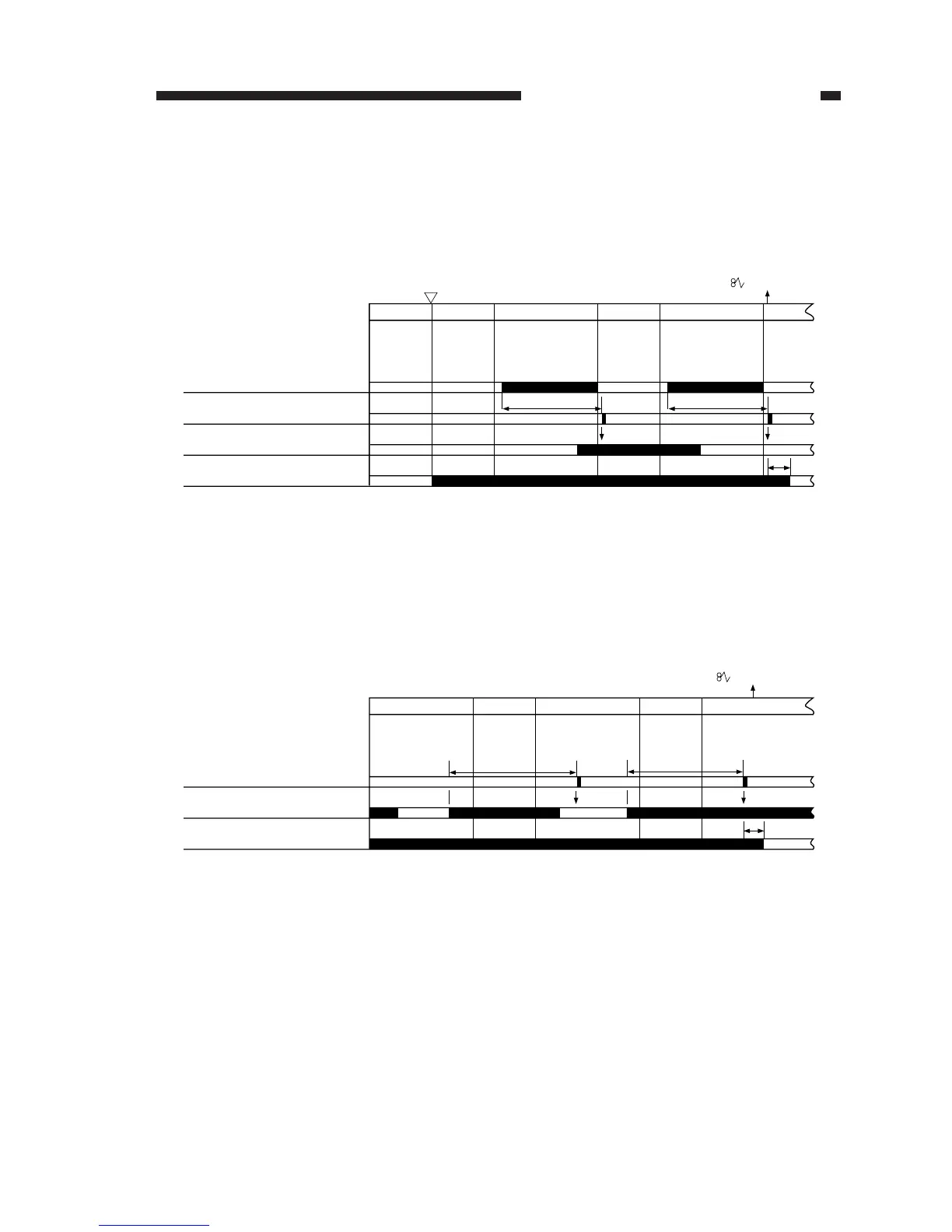

Figure 5-123
8. Delivery Stationary Jam
If copy paper does not move past the delivery sensor within a specific period of time because of
feeding faults, the machine will identify the condition as a delivery stationary jam, stop the opera-
tion immediately, and flash the Jam indicator.
Copy Start key
ON
STBY INTR SCFW
Registration clutch solenoid (SL2)
Jam check
Delivery sensor (PS3)
Main motor (M1)
4.1sec
normal
SCRV SCFW
4.1sec
indication
Jam
1.5sec
7. Delivery Delay Jam
If copy paper does not reach the delivery sensor within a specific period of time because of
feeding faults, the machine will identify the condition as a delivery delay jam, stop the operation
immediately, and flash the Jam indicator.
Figure 5-124
SCFW
Jam check
Delivery sensor (PS3)
Main motor (M1)
4.1sec
SCRV SCFW
4.1sec
SCRV SCFW
Normal
indication
Jam
1.5sec
