g. Points to Note When Mounting the Fuse
When mounting the thermal fuse of the No. 1 mirror mount, be sure that the fuse is oriented as
shown.
Make sure that the fuse is in contact with the reflecting plate.

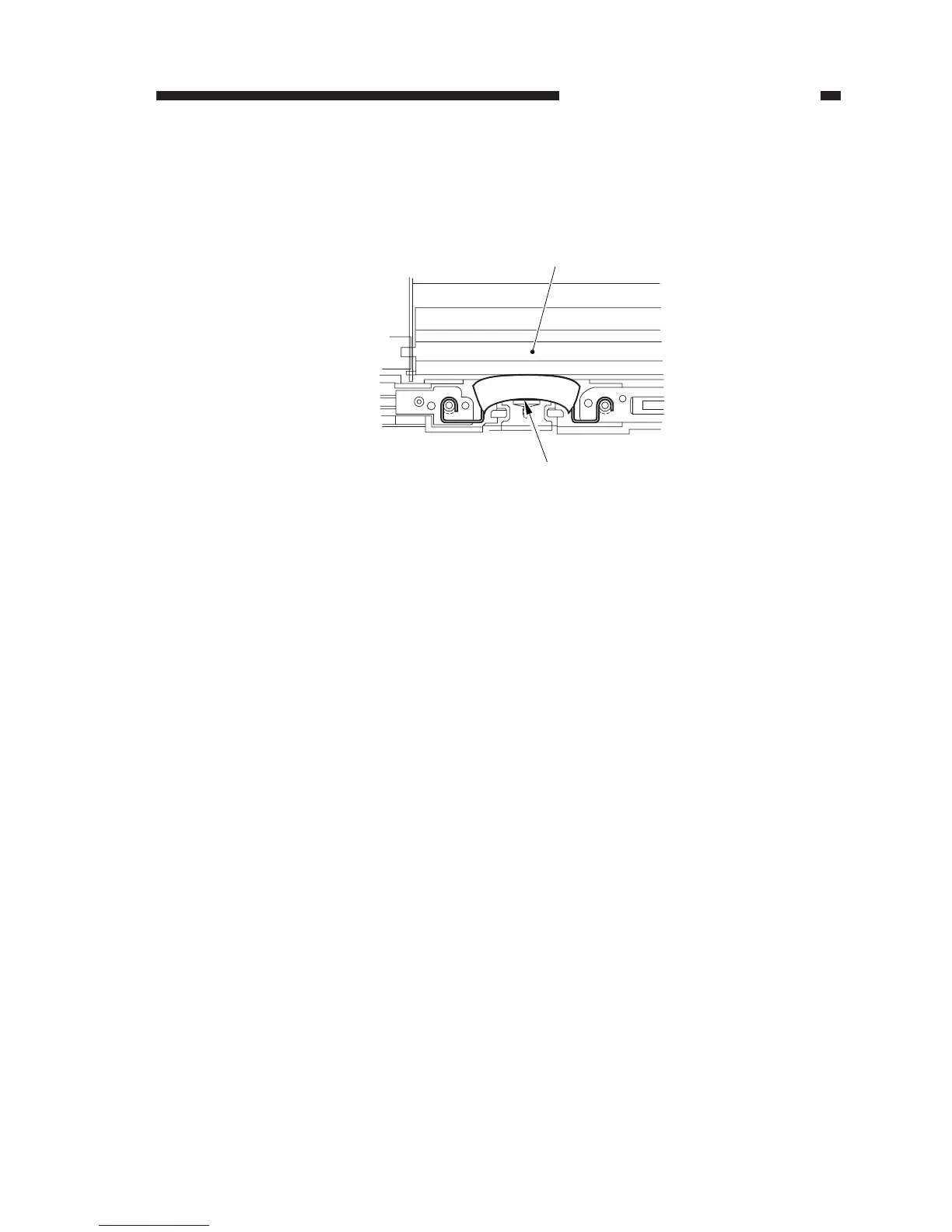

Figure 11-243
(front)
Thermal fuse
Reflecting plate
