CHAPTER 5 PICK-UP/FEEDING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-29

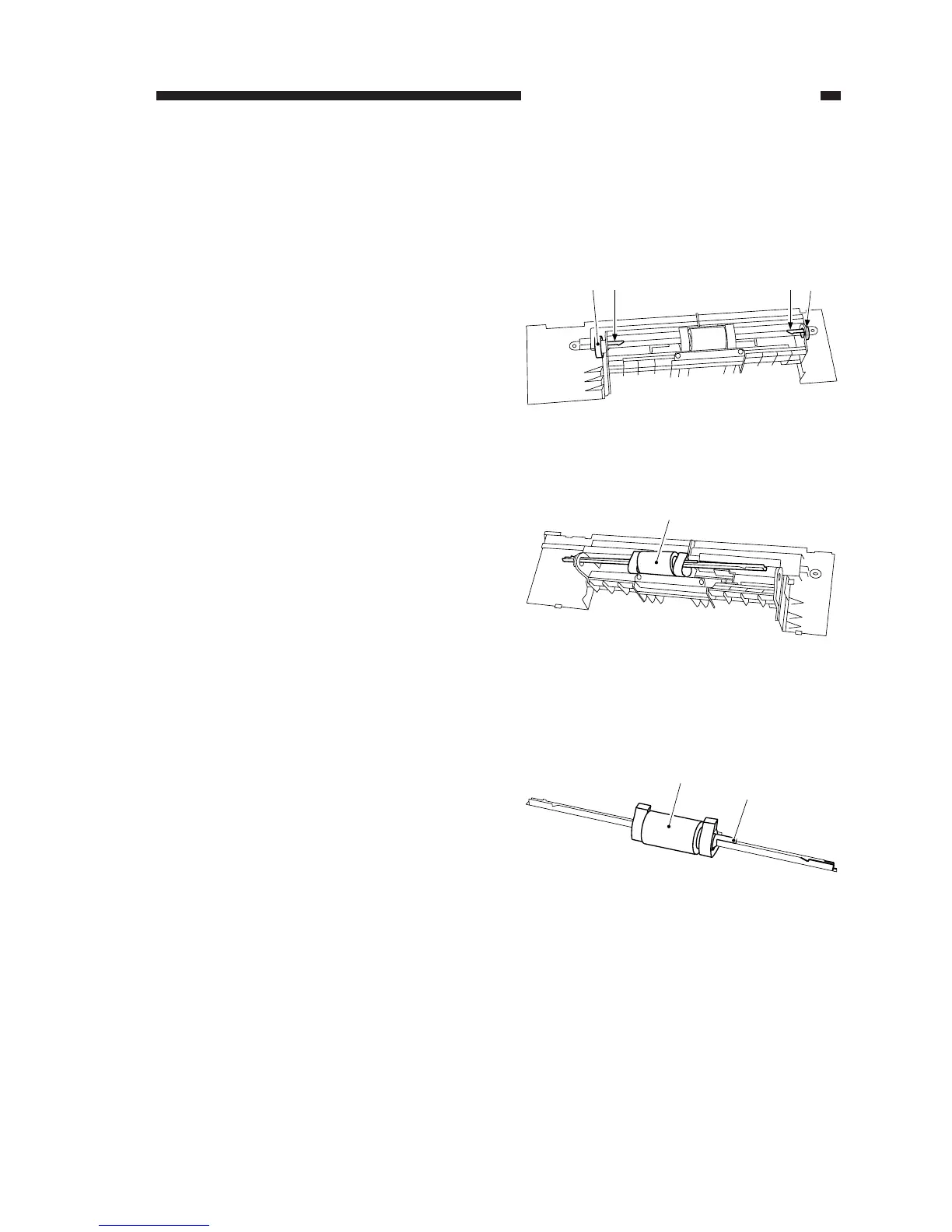

Figure 5-221
Figure 5-222
Figure 5-223
[2] [1] [1] [3]
[4]
[6]
[5]
2. Removing the Multifeeder Pickup
Roller
1) Remove the multifeeder unit.
(See 1. “Removing the Multifeeder
Unit.”)
2) Free the claw [1], and remove the gear [2]
and the bushing [3].
3) Remove the multifeeder pickup roller unit
[4].
4) While freeing the claw [5], detach the
multifeeder pickup roller [6].
To Next Page
