CHAPTER 6 FIXING SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
6-12

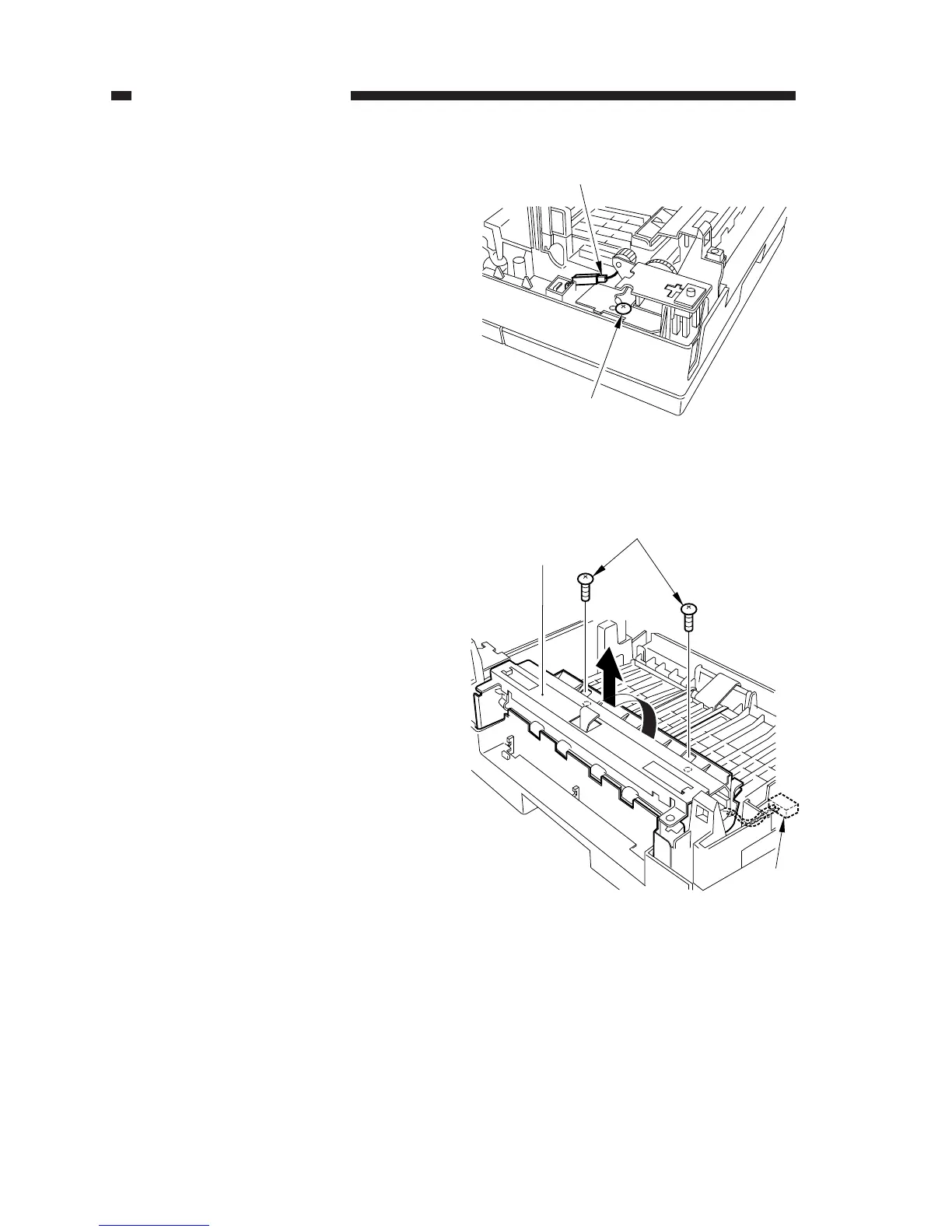

Figure 6-203
Figure 6-204
[5]
[4]
[8]
[6]
[7]
3) Remove the screw [4], and disconnect the
connector [5].
4) Remove the two screws [6], and discon-
nect the connector [7]; then, detach the
fixing assembly [8] by turning it in the di-
rection of the arrow.
