CHAPTER 7 EXTERNALS/AUXILIARY MECHANISMS
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
7-5

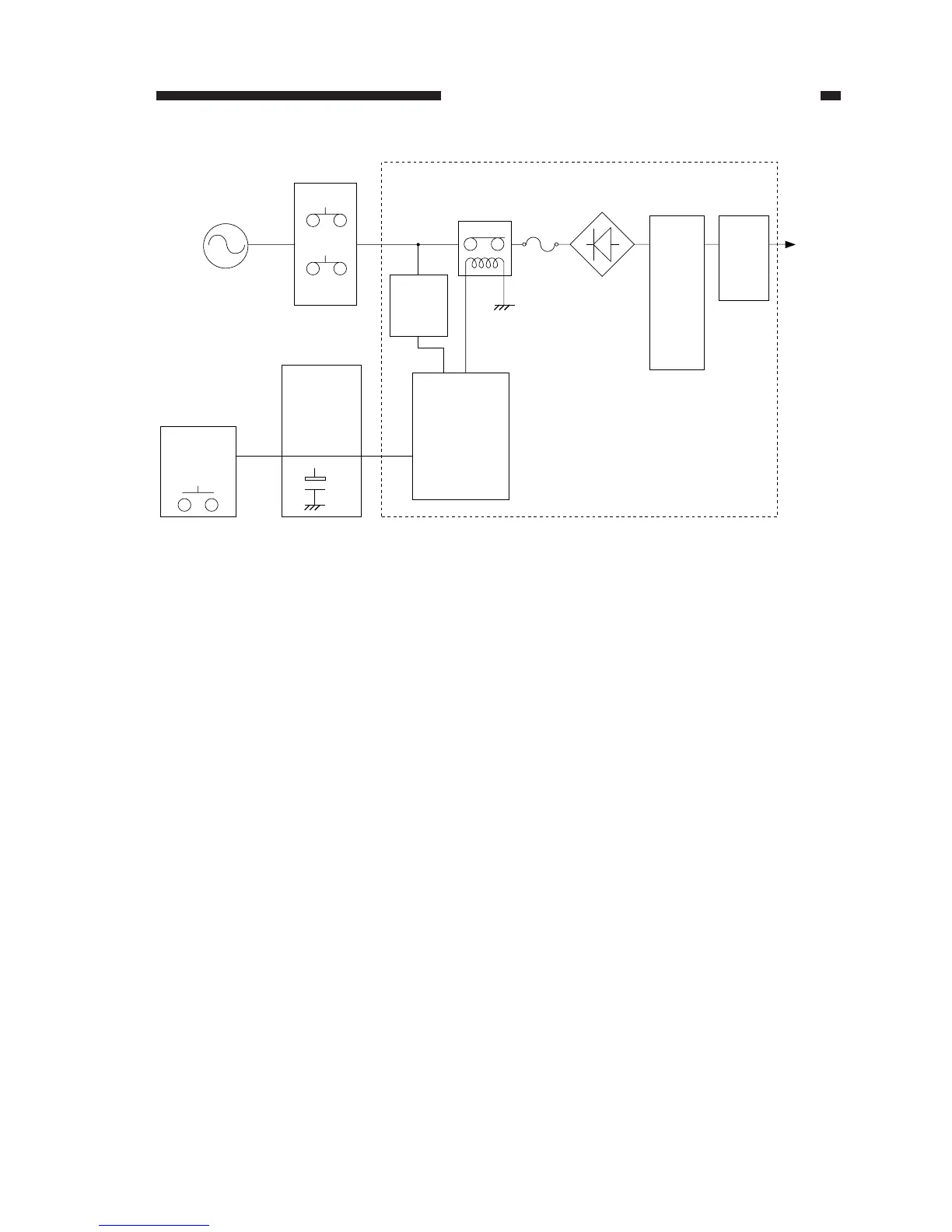

Figure 7-202
Door switch
DS1
Auxiliary
power
supply
Relay
RL601
FU102
+5V
Microprocessor
(Q900)
C123
Power
switch
SW309
Control panel
DC controller PCB
Power supply
Main
transfor-
mer
T101
DC
power
supply
+5V
+24VR
+24VU
+
