CHAPTER 11 TROUBLESHOOTING
COPYRIGHT © 1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON) 11-44
4) Turn VR103 on the DC controller PCB fully clockwise.

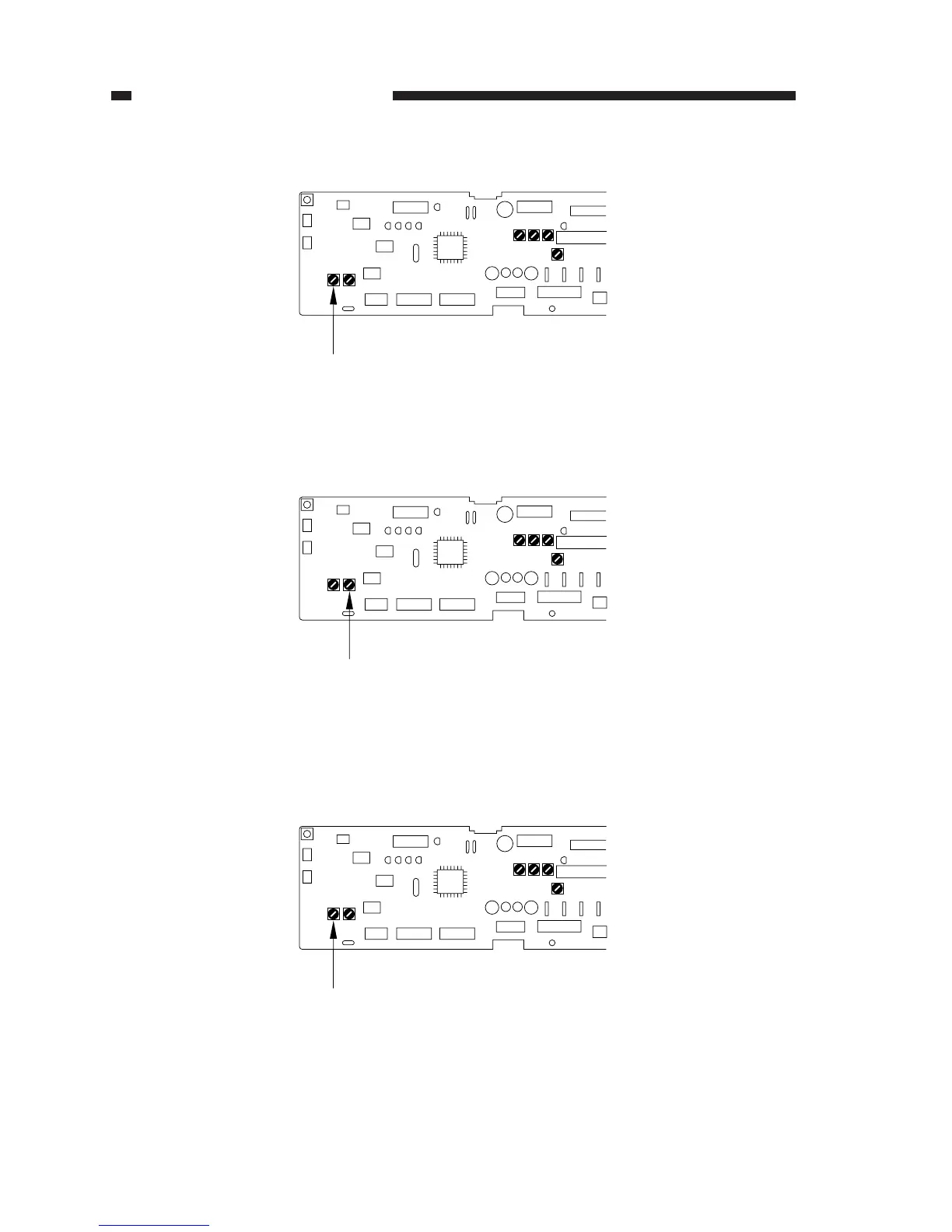

Figure 11-266
5) Place a newspaper on the copyboard, and close the copyboard cover.
6) Turn VR102 so that the display indicates ‘A3’ to ‘Ad’.
Figure 11-267
7) Remove the newspaper from the copyboard, and place five sheets of copy paper in its place;
then, close the copyboard cover.
8) Turn VR103 on the DC controller PCB so that the display will indicate ‘52’ to ‘5c’.
Figure 11-268
