CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-18
Figure 3-309
Figure 3-310
[2]
[2]
[4]
[2]
[2]
[3]
[3]
[5]
[4]
[5]

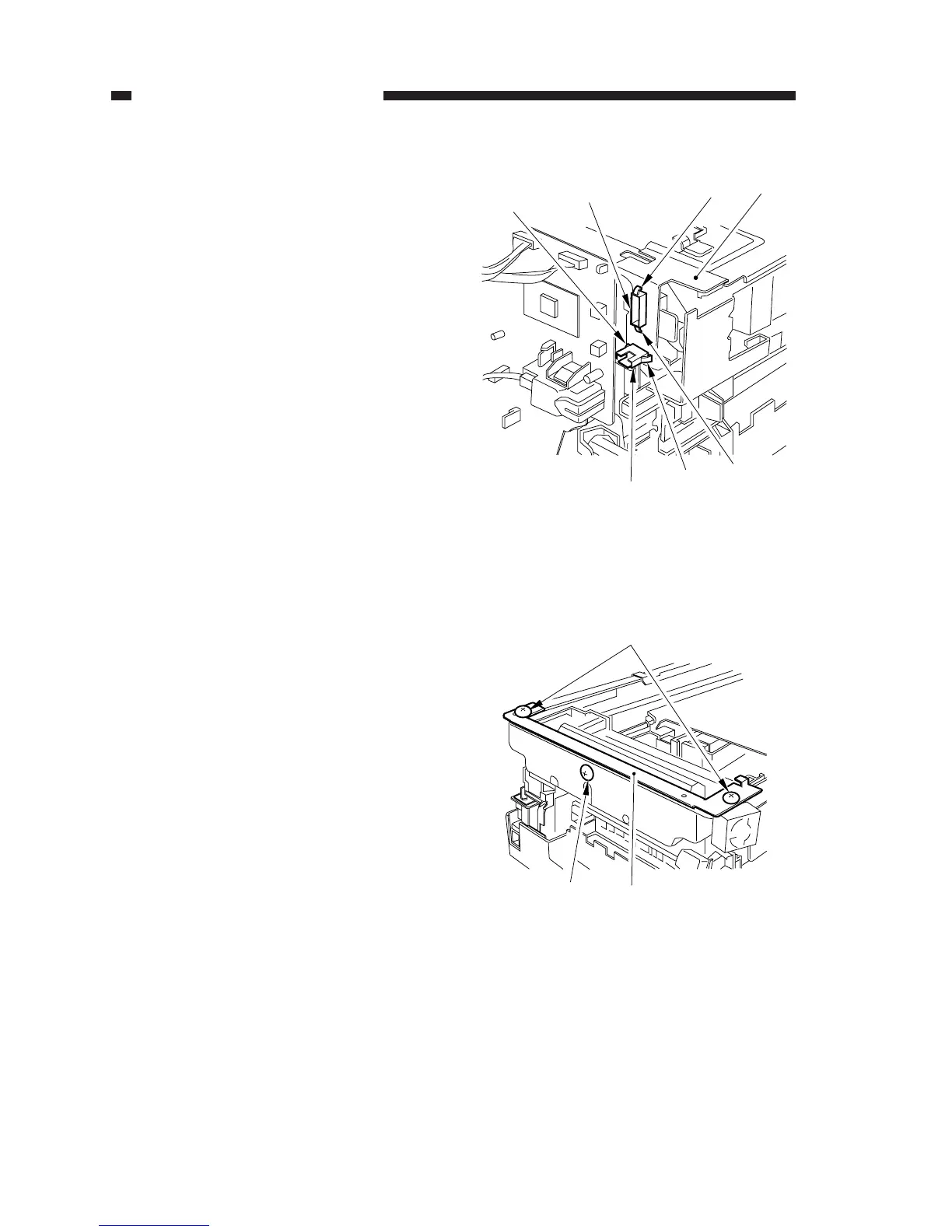

5) If the machine is equipped with an ADF,
free the hook [2], and disconnect the two
relay connectors [3] from the left upper
stay [4].
6) Remove the three screws [5], and detach
the left upper stay [4].
