CHAPTER 3 EXPOSURE SYSTEM
COPYRIGHT
©
1999 CANON INC. CANON PC800s/900s REV.0 AUG. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
3-20
Figure 3-313
Figure 3-312
[2]
Shorter end
Longer end
[1]
Face with a marking
[1]
[3]
Top View
[3]

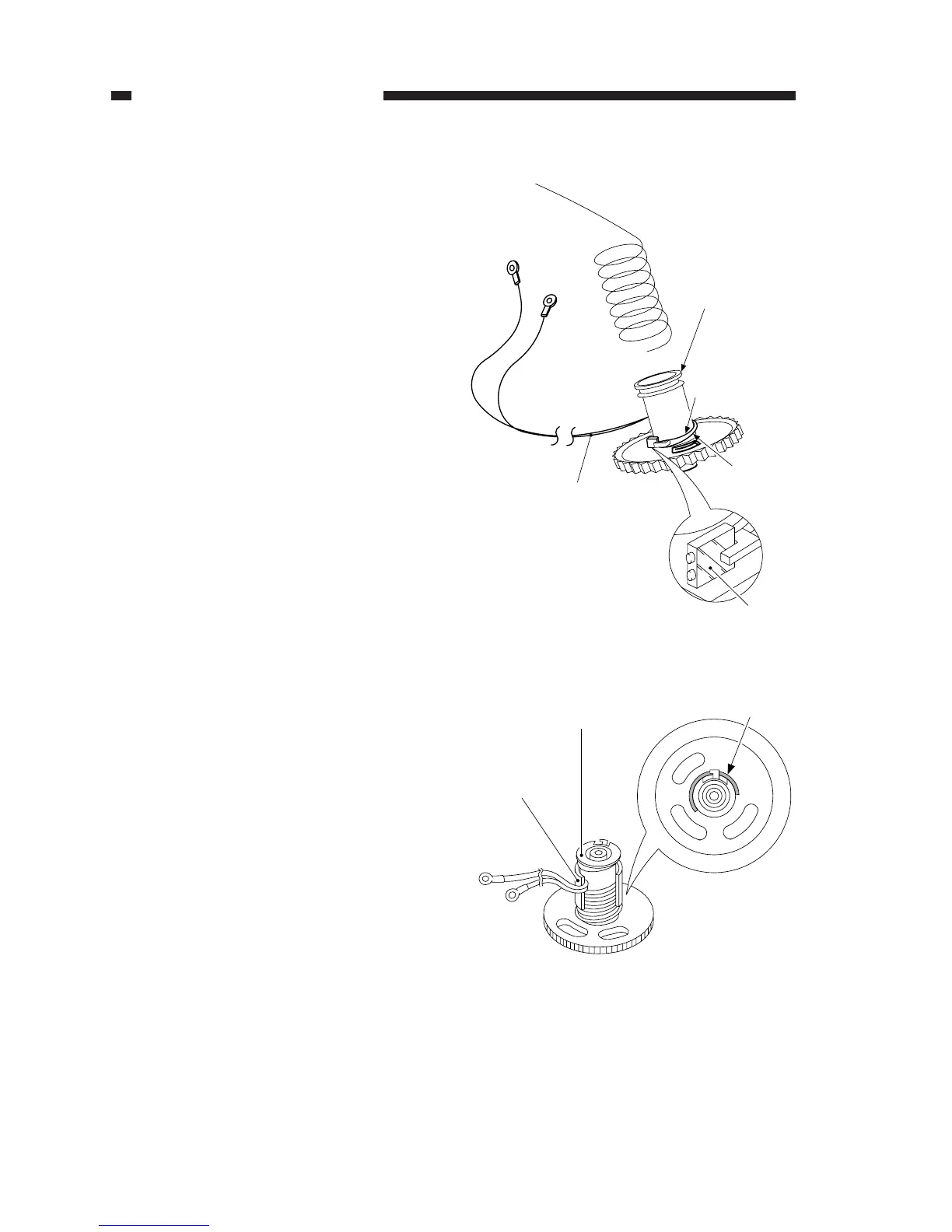

b. Routing the Reversing Cable
1) Wind the reversing cables (silver-colored)
[2] on the cable drive pulley [1] 7.5 times
with the longer end on top; then, secure it
in position with a cable clip [3].
To Next Page
