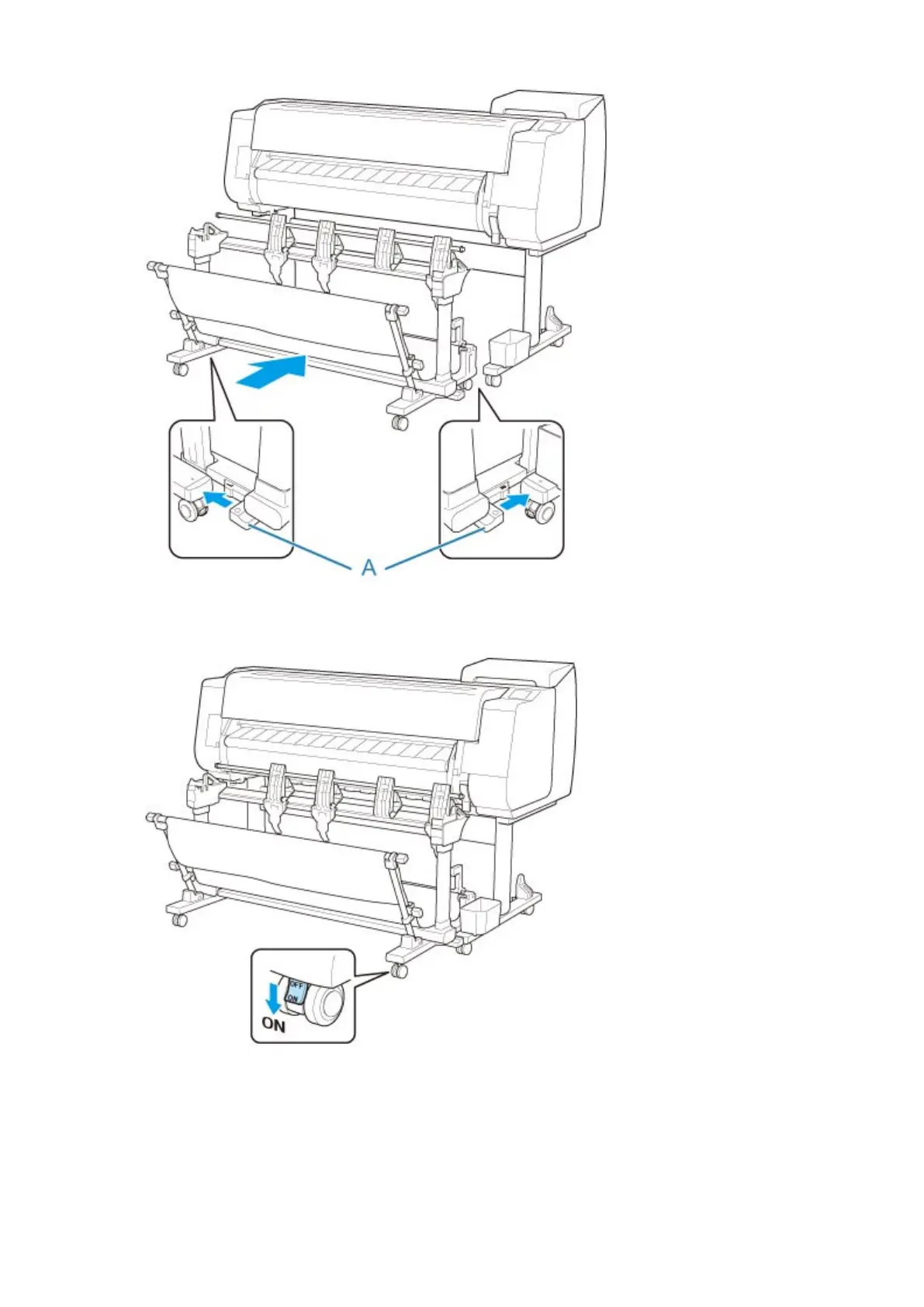

Set all locks of the four casters of the stacker to the ON position.

Removing Stacker from the Printer

1. Set all locks of the four casters of the stacker to the OFF position.
