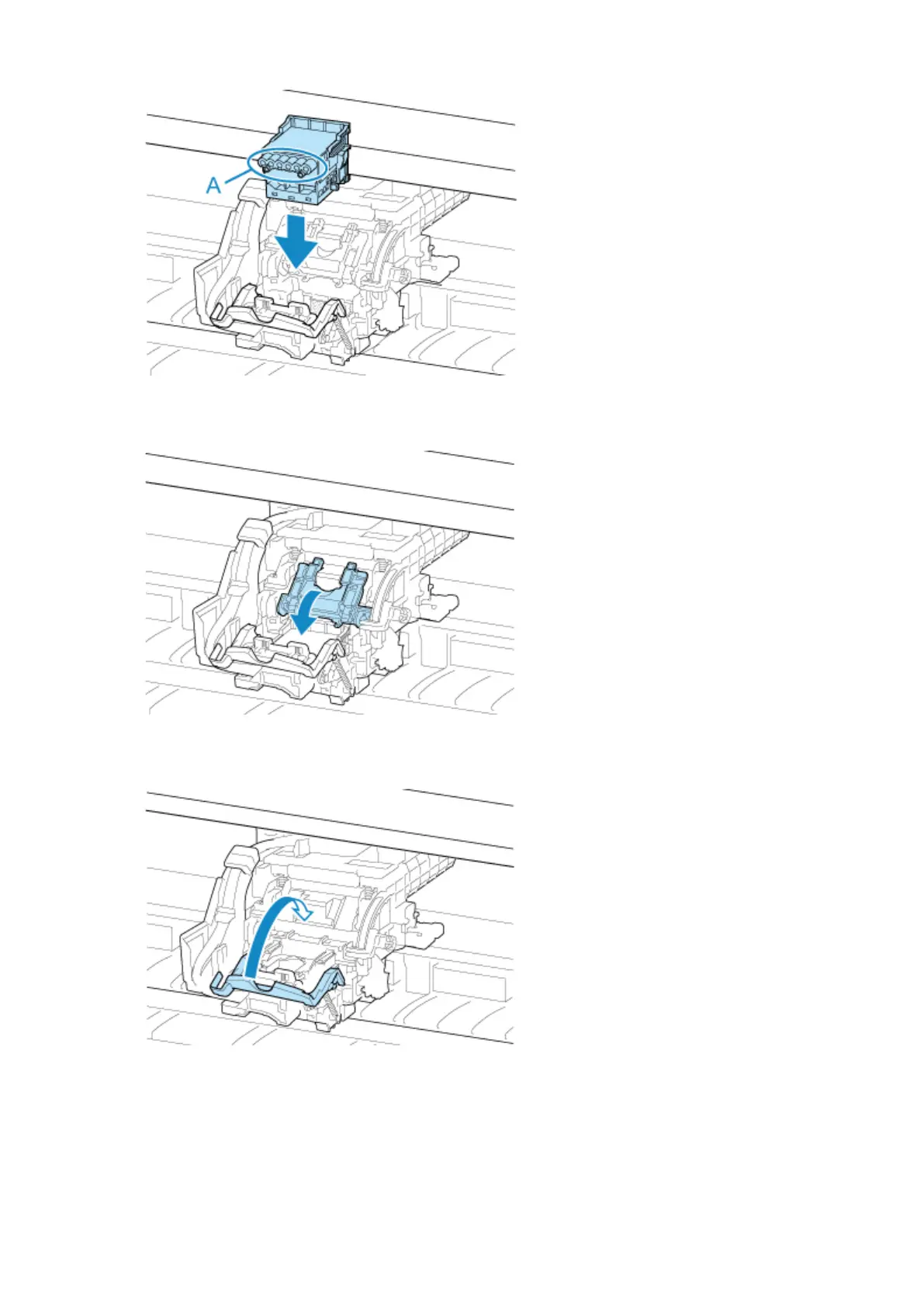

15.

Lower print head locking cover to front and lock print head.

16.

Lower print head lock lever toward the back.

17. Close top cover.
