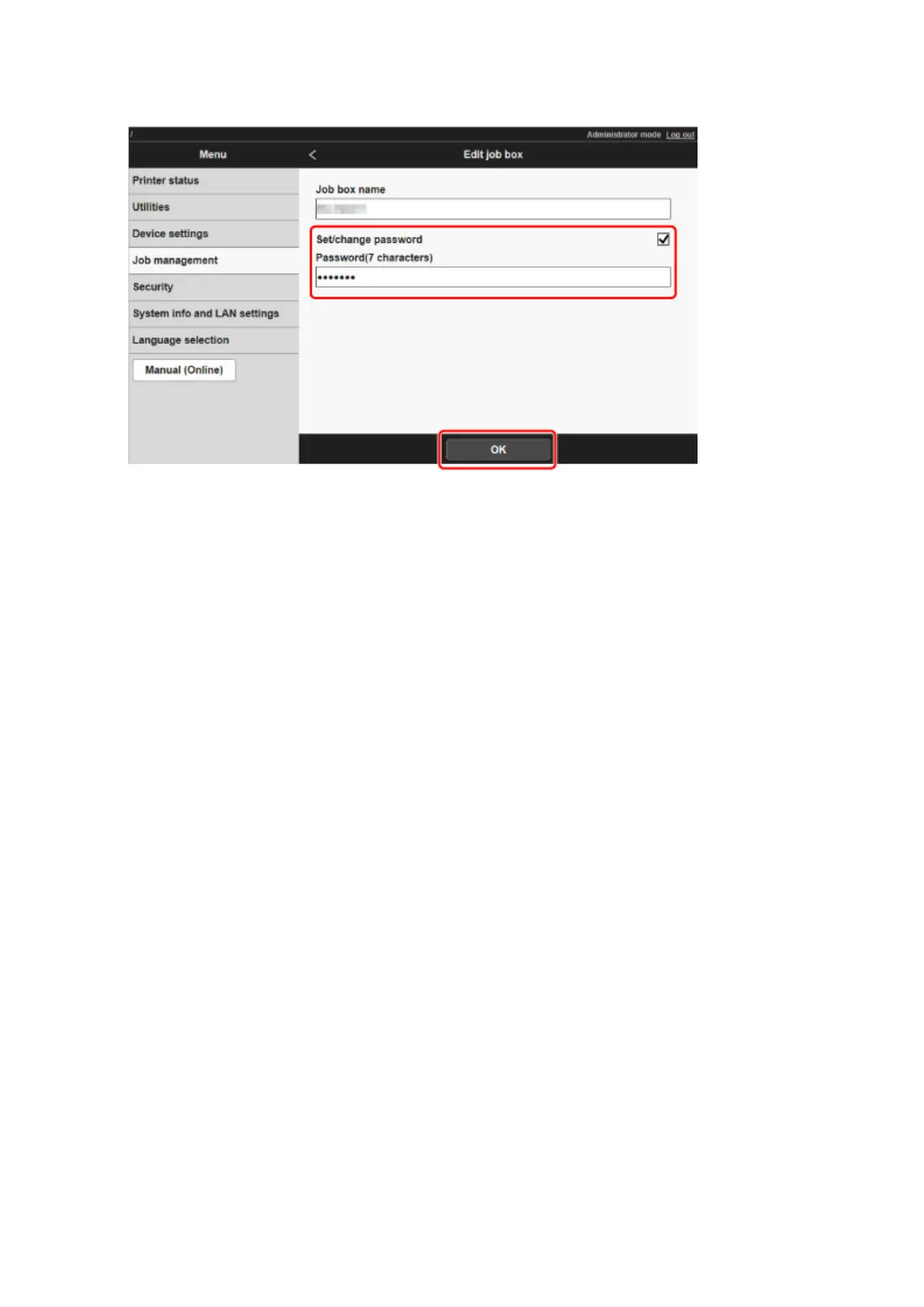

6. In Edit job box dialog box, specify password.

Select Set/change password check box and enter password. (This field is limited to seven

digits in the range 0000001 to 9999999.)

Select OK.

689
