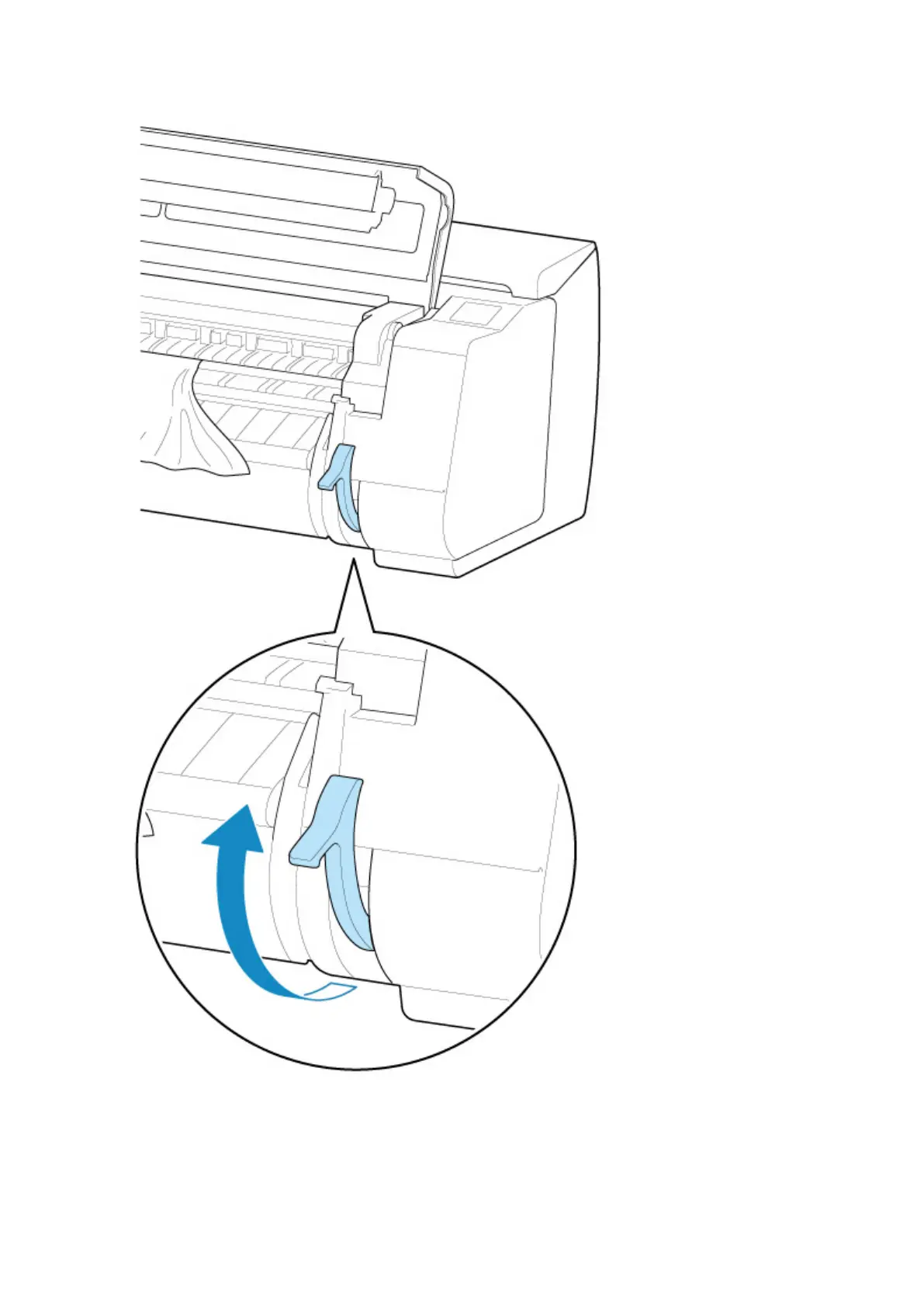

4. Lift up the release lever.

Holding the paper on both sides, pull the jammed portion out toward the front. Use scissors

or a cutting tool to cut away the printed or wrinkled portion.

720
