Wiring inputs and outputs
Carrier® ChillerVu™
(OPN-PSM-MPCXPE) Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide 19 All rights reserved

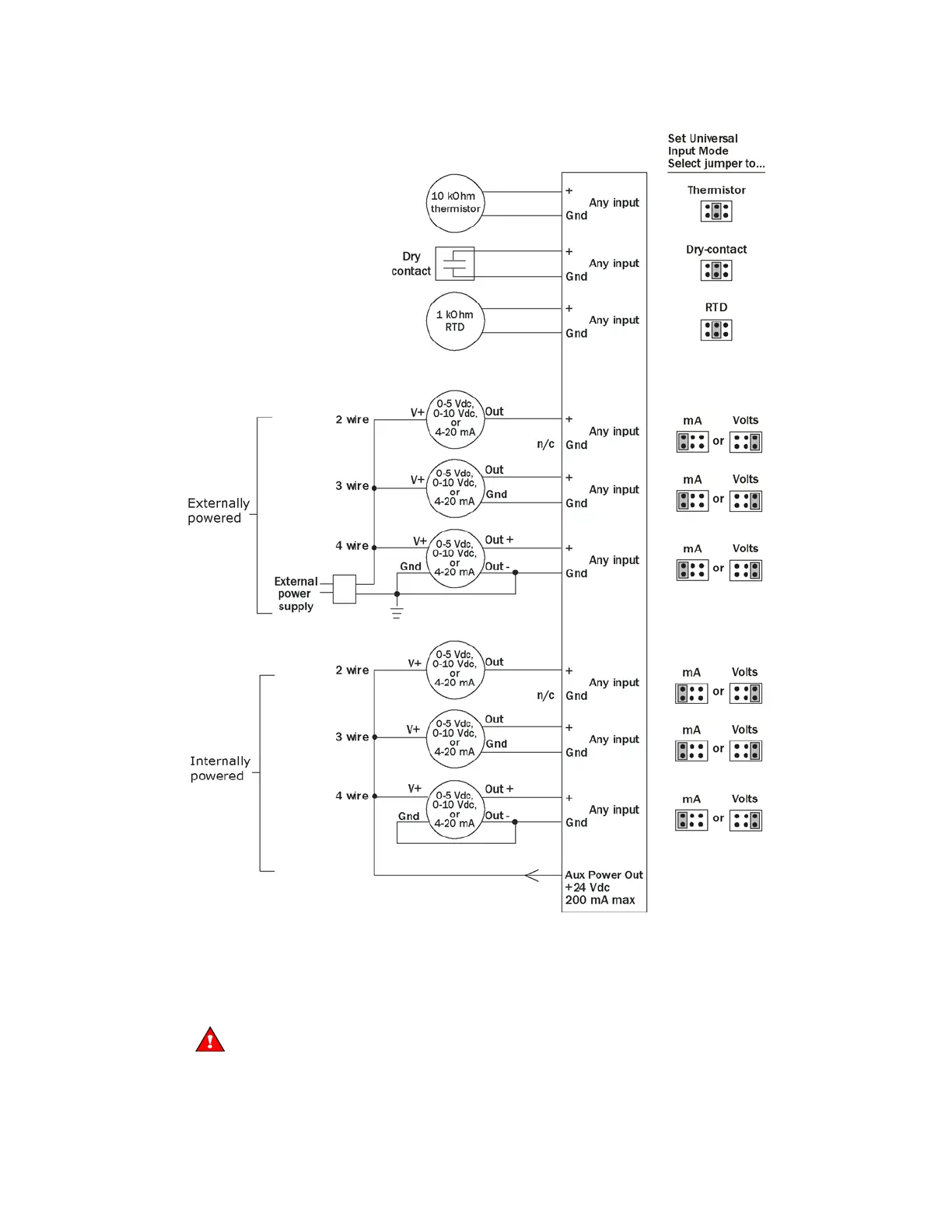

4 Set each input's
Universal Input Mode Select
jumper to indicate the type of input.
5 Connect digital and analog output wiring to the
screw terminals on the Carrier® ChillerVu™ and to the
controlled device. Connect the ground wire to the UO's
terminal.
Binary outputs are powered, 24 Vdc channels. Dry contact binary outputs are not
supported in the Carrier® ChillerVu™ product line. Do NOT apply 24 Vac to these universal outputs.
