Wiring inputs and outputs
Carrier® ChillerVu™
(OPN-PSM-MPCXPE) Carrier Proprietary and Confidential CARRIER CORPORATION ©2017
Installation and Start-up Guide 20 All rights reserved

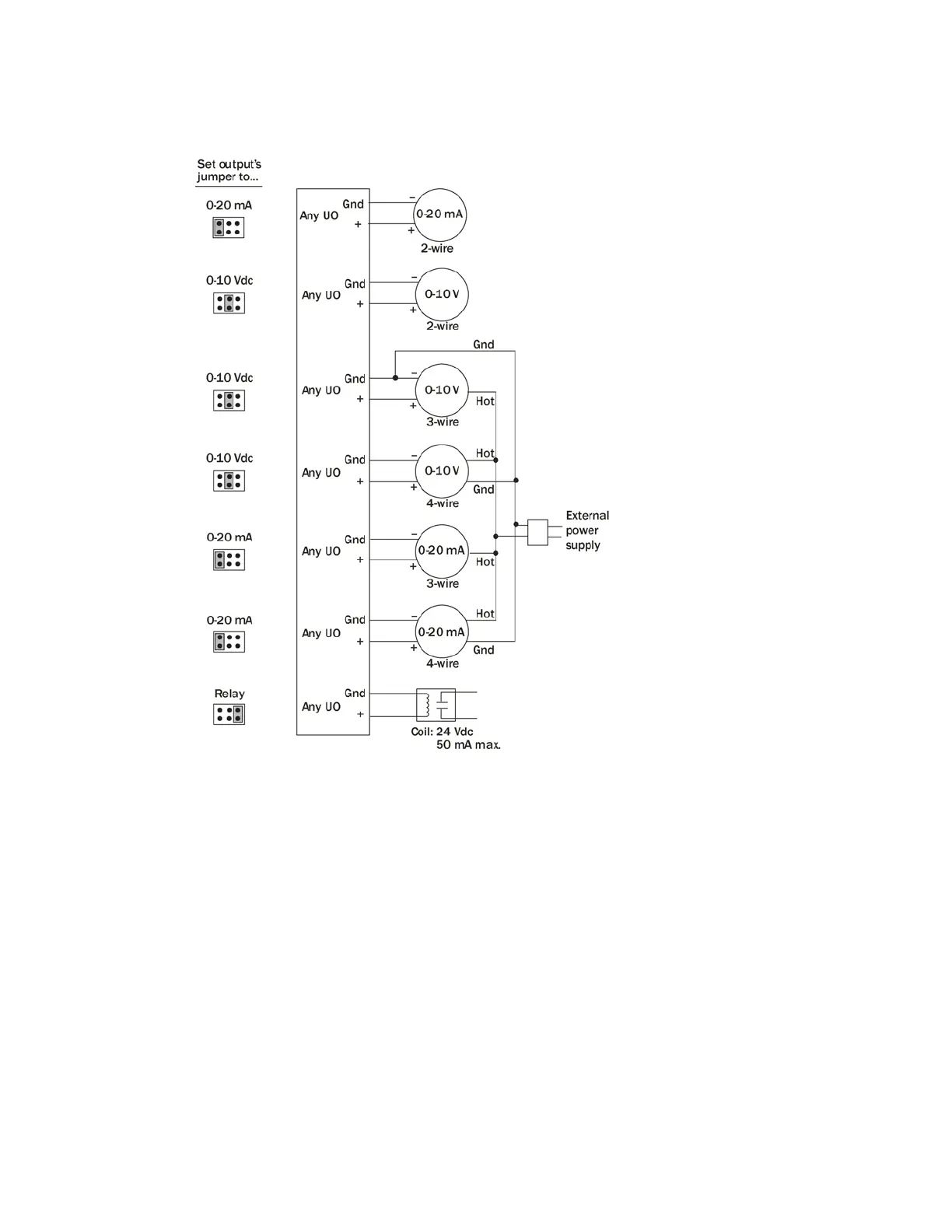

6 Set each output's jumper to the type of device wired to the output.
7 For each digital output, turn the output's potentiometer clockwise until it stops (maximum output).
8 Turn
the Carrier® ChillerVu™'s power.
