4-OPERATINGINSTRUCTIONS

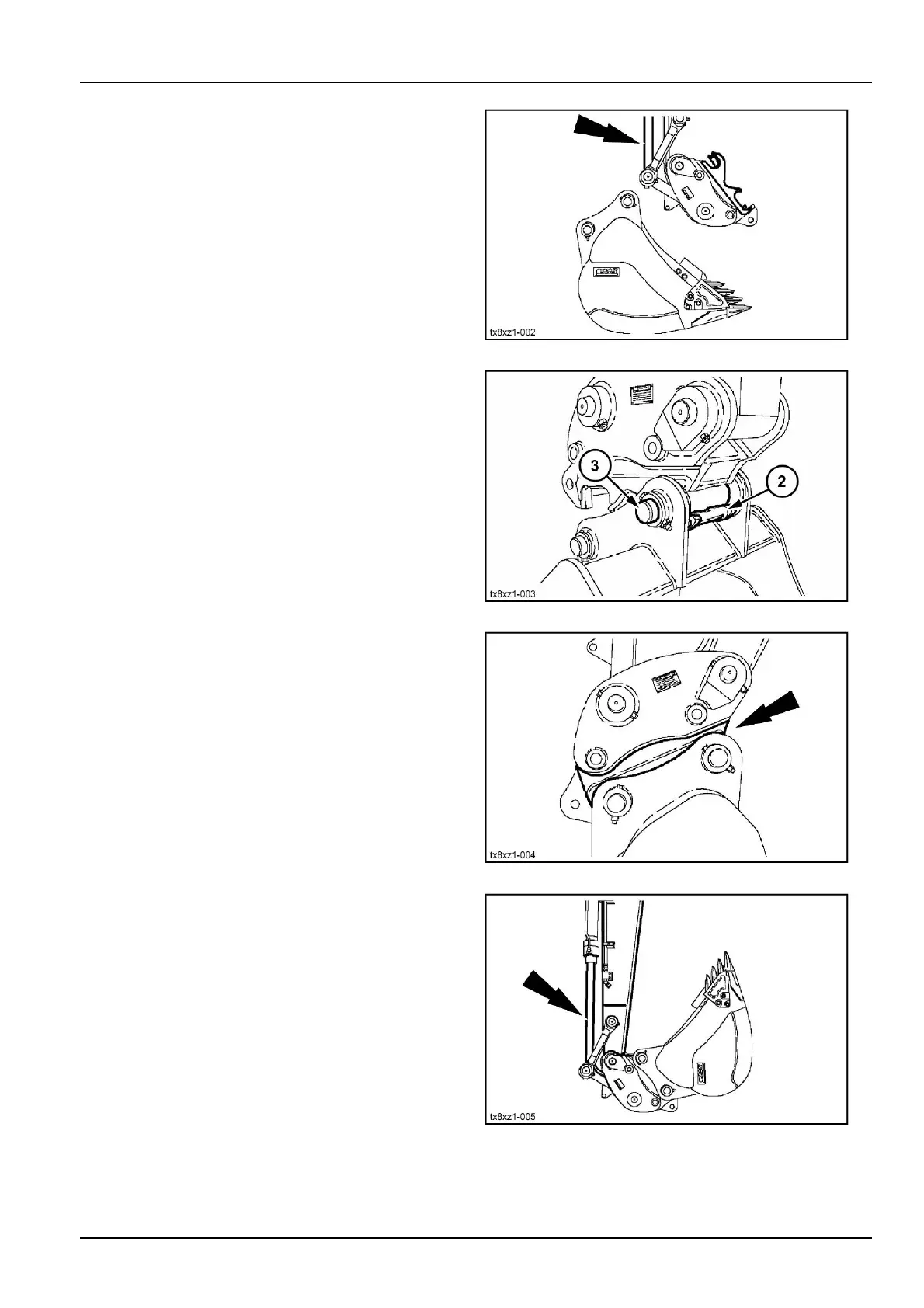

3.Operatethearmandbucketcontrolssothatthearmis
practicallyvertical,slopingslightlytowardsthecab,to
releasethesafetydevice.Extendthebucketcylinder
rodcompletelyandmaintainthehydraulicpressureso
thatthelatchinghookretracts.
TX8XZ1-002A3
4.Operatethearmcontrolleversoastobringthequick
couplerhook(2)aroundthetoolpin(3).
TX8XZ1-003A4
5.Operatethebucketcontrolleversothatthepiniscom-
pletelyengagedinthequickcouplerhook.
TX8XZ1-004A5
6.Raisethearmandoperatethebucketcontroltoextend
thebucketcylinderrodcompletely.
TX8XZ1-005A6
4-23
