CASE CONSTRUCTION CX160C - Muti-purpose Circuit with Pressure Adjuster

4-OPERATINGINSTRUCTIONS
Muti-purposecircuitwithpressureadjuster
Pedaltype

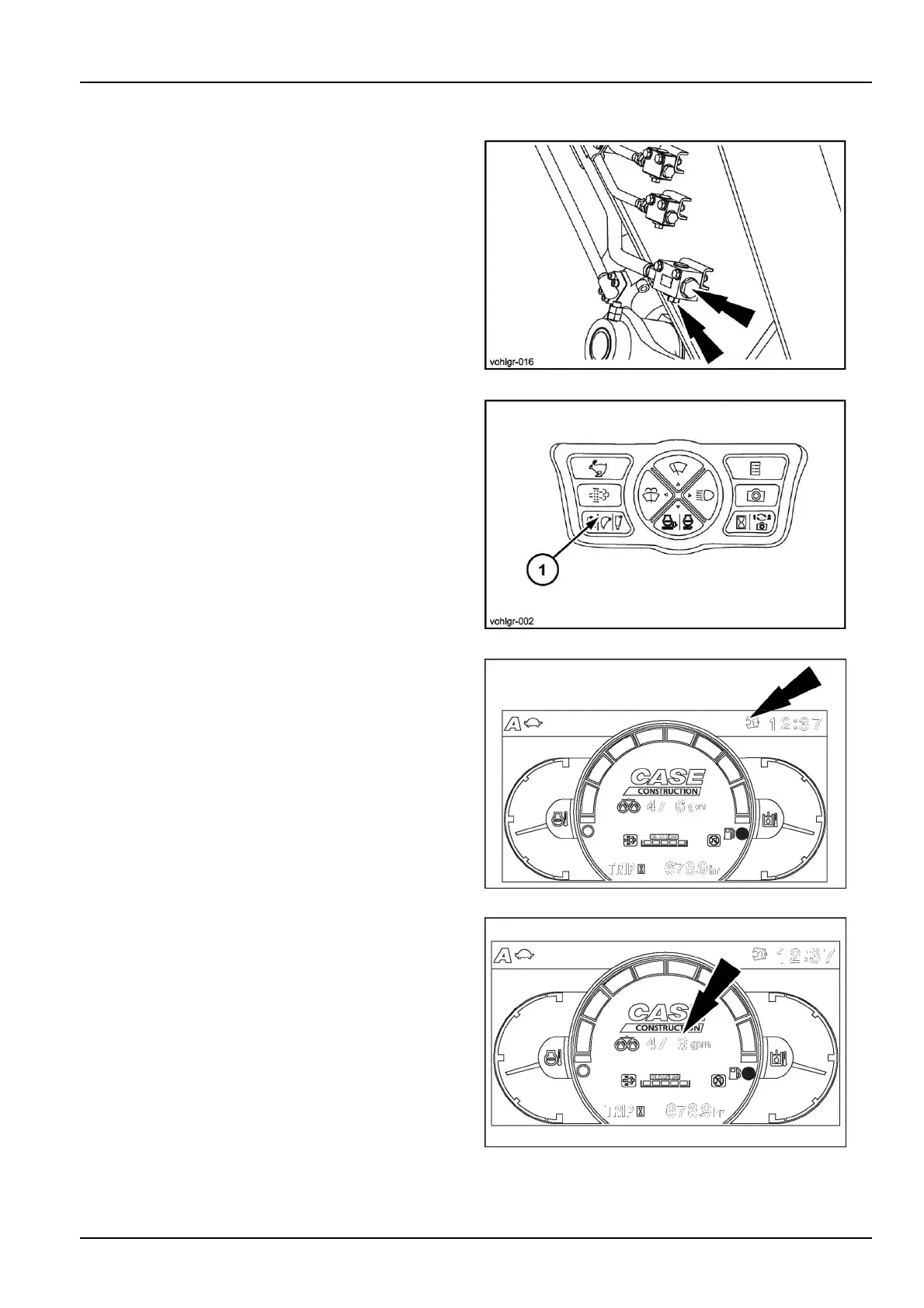

1.Makethenecessarytoolconnectionsandthen,using
ahexagonalwrench,openthesupplyvalveslocated
atthetipofthearm,left-handandright-handside.
VOHLGR-01615
2.Switch(1)locatedontheright-handconsoleupwards,
correspondingtothedemolitiongrab.
Everytimetheswitch(1)ispressed,oneofthediffer-
enttypesofowpatternsrecordedforthepumpcan
beselected.Fortheowandpressuresettingmethod,
refertopage3-26.
VOHLGR-00216
3.Theiconoftheaccessoryassociatedtoeachtypeof
owappearsonthescreen.
SMIL15CEXX701AA17
4.Afterswitch(1)hasbeenoperated,thesetowand-
pressurewillbedisplayedforasetamountoftime.
SMIL15CEXX702AA18
4-31
