4-OPERATINGINSTRUCTIONS
NOTE:Topreventfailureordamagetothetool,make
surethatyouselectthecorrectcircuitcongurationand
owrateandpressureforthetool.
DF9E19E212

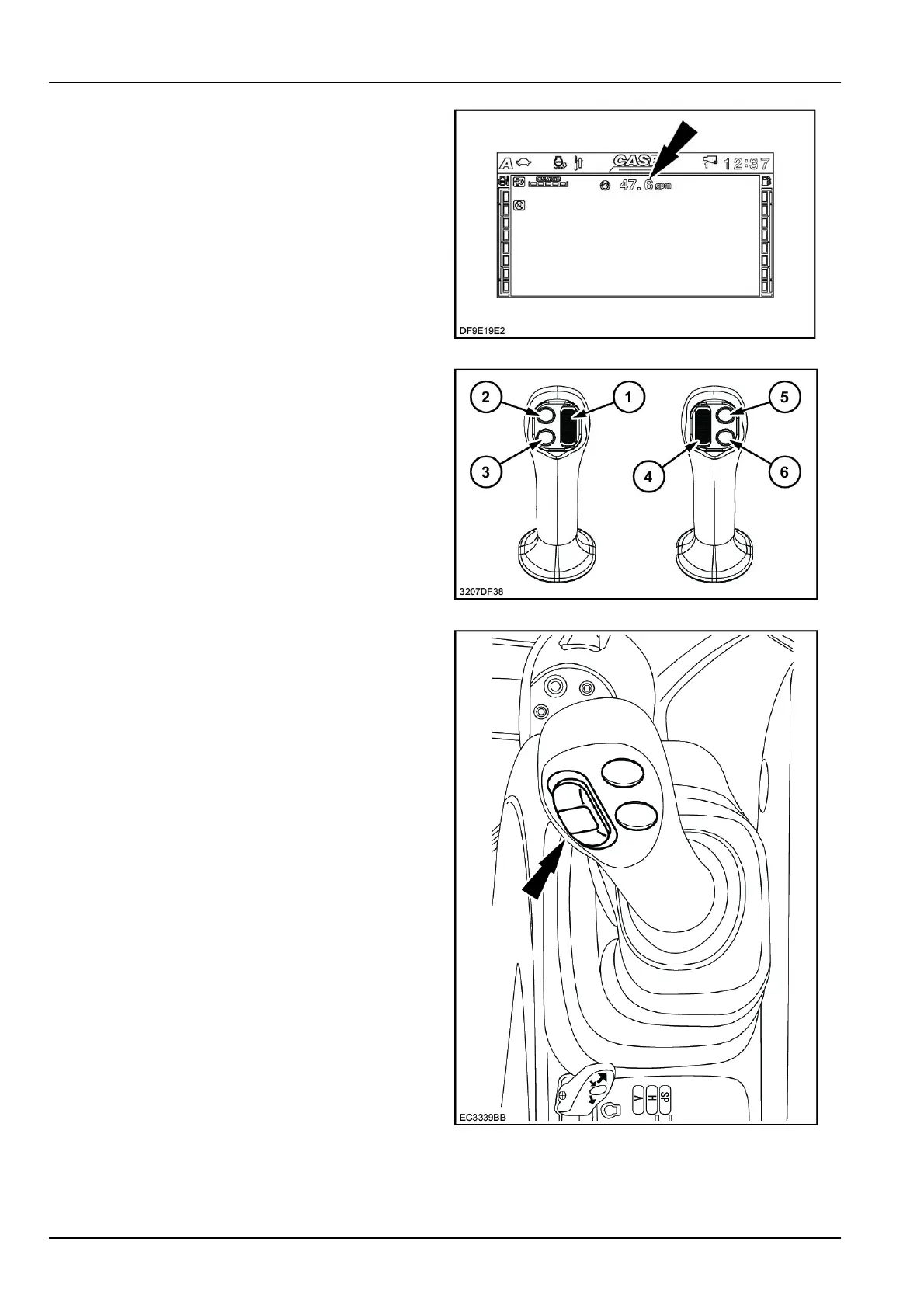

5.Proportionalswitch
(1)=Proportionalswitch(Optioncontrolswitch).
(2)=Optioncontrolswitch
(3)=Hornswitch
(4)=Proportionalswitch(Optioncontrolswitch)
(5)=Optioncontrolswitch
(6)=Engineidleswitch
3207DF3813
6.Usetheproportionalswitchtooperatethehydraulic
breaker.
NOTICE:InBucketmode,donotcarryoutoperationus-
ingauxiliaryline.Ifyoudothatthewarningmessage
“Auxiliaryset-uprequired”willbedisplayedwithalarm
sound.Stopoperationimmediatelyandcarryoutauxil-
iaryset-up.
NOTE:Topreventfailureordamagetothetool,make
surethatyouselectthecorrectcircuitcongurationand
owrateandpressureforthetool.
EC3339BB14
