6-MAINTENANCE

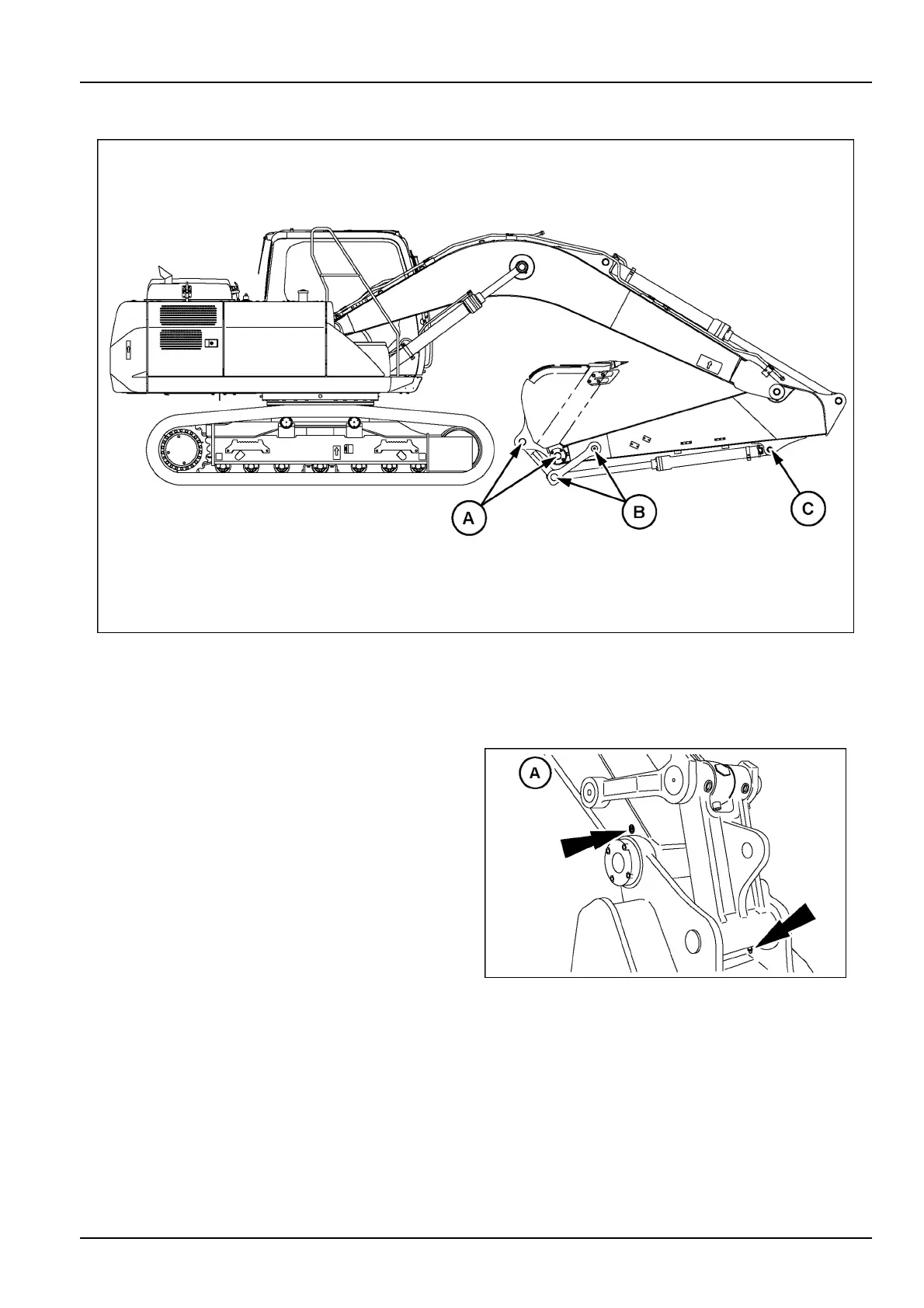

Arm/backhoebucket

SMIL15CEXX718FB9

NOTE:Ifthefollowinglinkagepointsarenotequippedwithoriginalparts,thesepointsmustbelubricatedevery10

hours.

Every250hours

Bucketlinkages:(2)

NOTE:Ifanaccessoryotherthanthebucketisinstalled,

(hydraulichammer,etc.)thesepointsmustbelubricated

every10hours.

SMIL15CEXX535AB10

6-15
