CASE CONSTRUCTION CX160C - Replacing the Reservoir Breather Filter Element

6-MAINTENANCE
Replacingthereservoirbreatherlterele-
ment
SMIL15CEXX755AB10

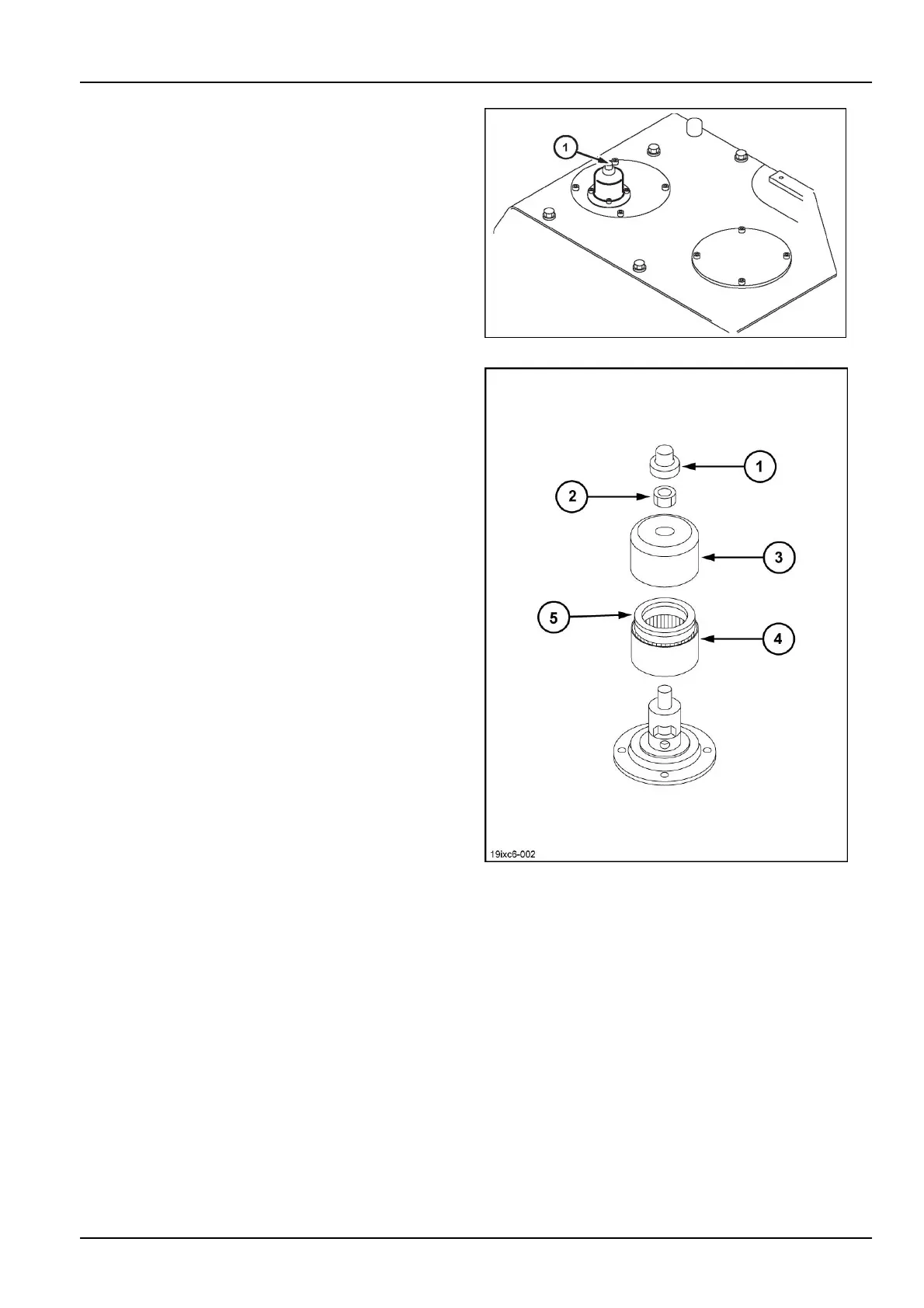

1.Pressthebutton(1)toreleaseallpressureinthehy-
draulicreservoir.
2.Removethenut(2)andthecover(3)fromthe
breather.
3.Removeanddiscardtheusedlterelement(4).
4.Installanewelement(4),makingsuretheseal(5)is
facingupward.
5.Installthecover(3)aswellasthenut(2).
19IXC6-00211
6-41
