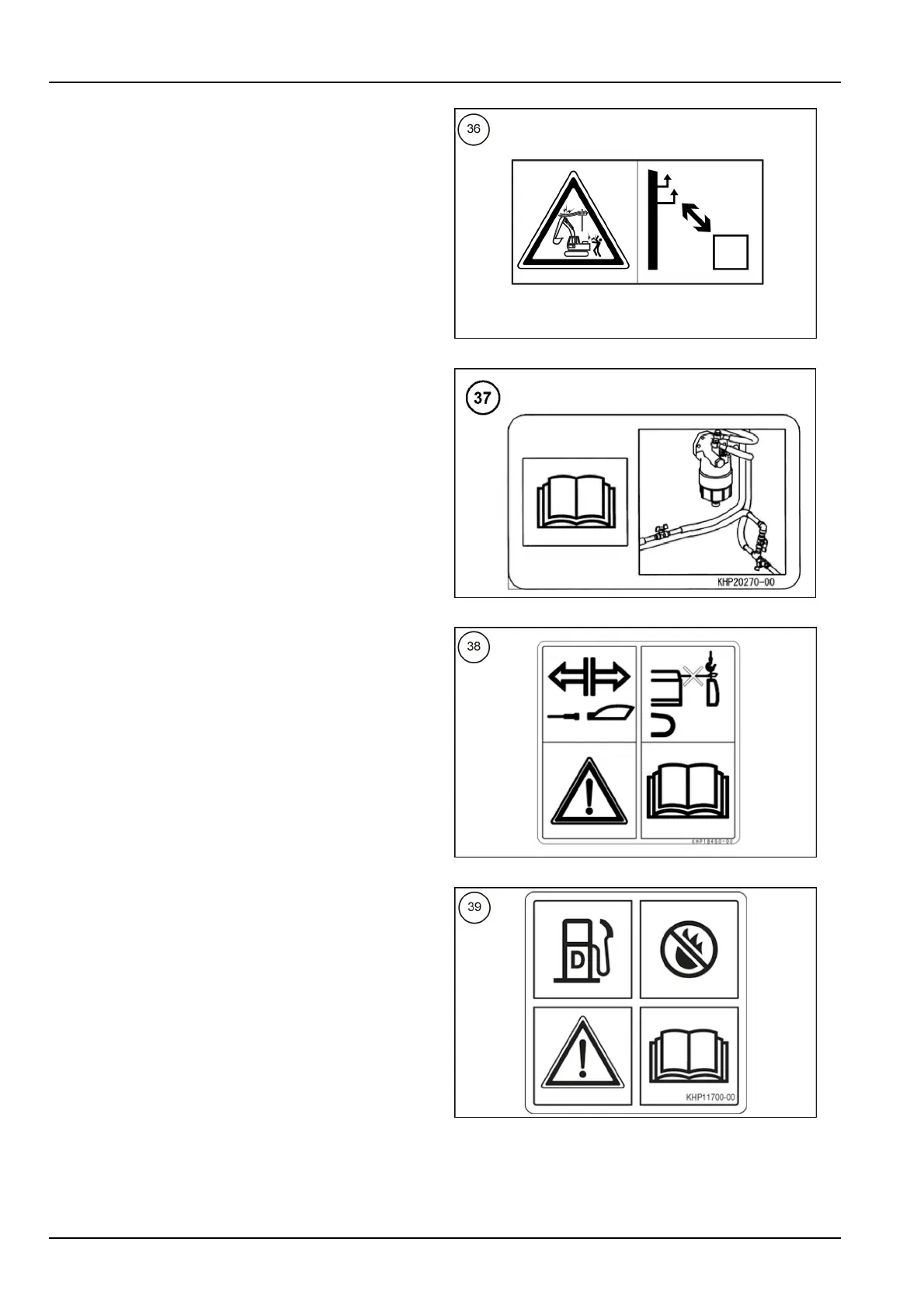

2-SAFETYINFORMATION

Electricshock

Partnumber:KHP18060

SMIL15CEX0910AB48

Fuellinevalve

Partnumber:KHP20270

Fortheusageofvalves,(referto“6-27”).

SMIL15CEXX682AB49

Cautionsforcamerawiring

Partnumber:KHP18460(option)

Disconnectthecamerawiringbeforeremovingthecoun-

terweight.

SMIL15CEX0912AB50

Fueltank

Partnumber:KHP11700

Thisdecalshowsthelocationofthefueltankandthat

suitablefuelmustbeused.(Referto“6-4”).

SMIL15CEX0913AB51

2-32
