2-SAFETYINFORMATION

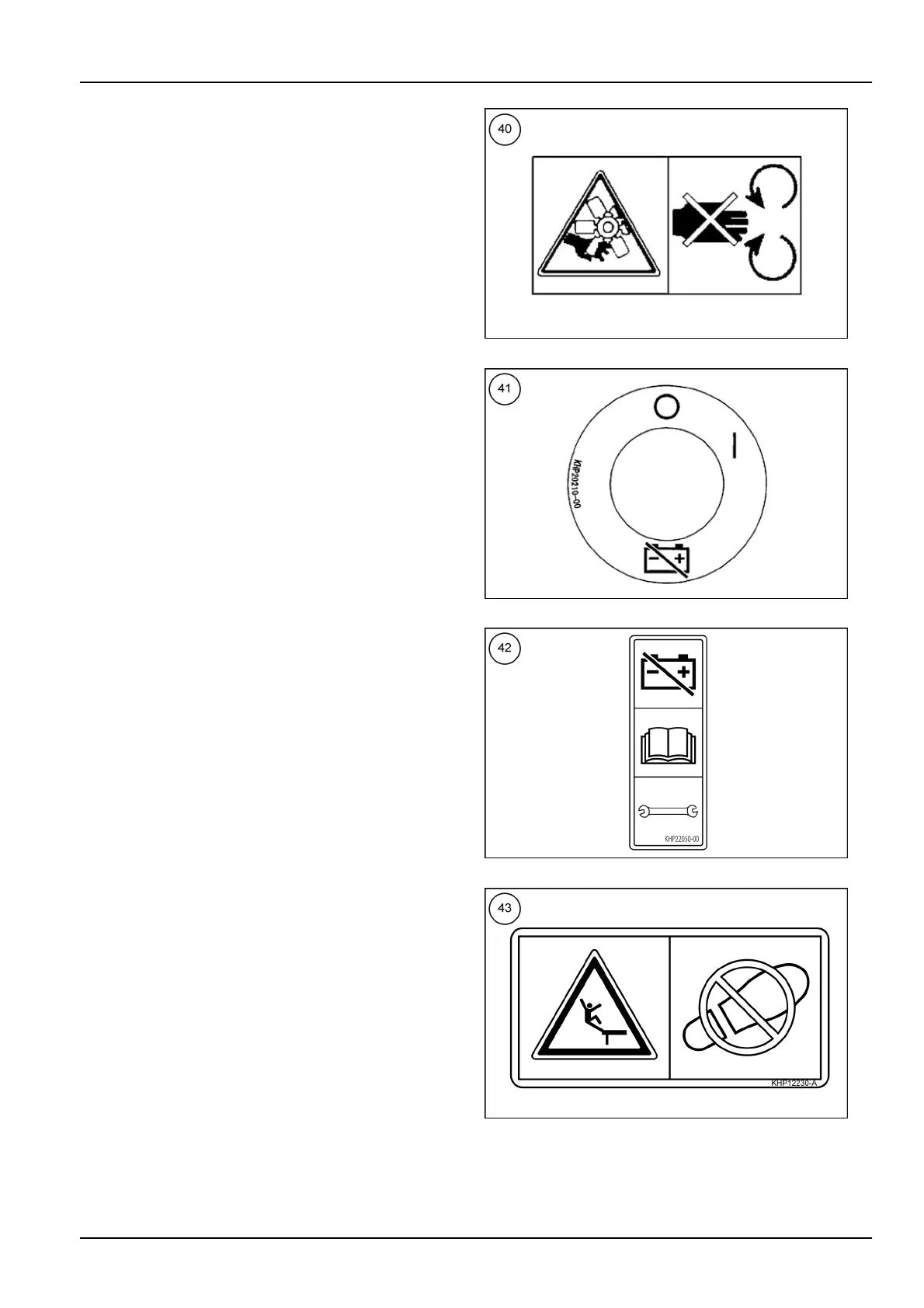

Enginehood

Partnumber:KHP1335

Thisdecalwarnsthatitisessentialtostoptheengine

beforeopeningthehood.

SMIL15CEX0914AB52

BatteryDisconnectSwitch

Partnumber:KHP20210

TurntheswitchtotheOFFpositiontocutoffthebattery.

Forthedetailedprocedures,refertotheoperator'sman-

ual.

Theuseofthisswitchislimitedtotheserviceoperations

suchasweldingandelectricalrepairs.

SMIL15CEX0915AB53

Cautionsforhandlingbatterydisconnectswitch

Partnumber:KHP22050

Thisdecalindicatesthatbatterydisconnectswitchmust

bedisconnectedafterreadingtheoperator'smanual.

SMIL15CEX0916AB54

Enginehood

Partnumber:KHP12230

Thisdecalshowsthatitisprohibitedtoclimbontothe

enginehood(riskoffalling).

SMIL15CEX0917AB55

2-33
