9-ACCESSORIES

Operatingcontrols

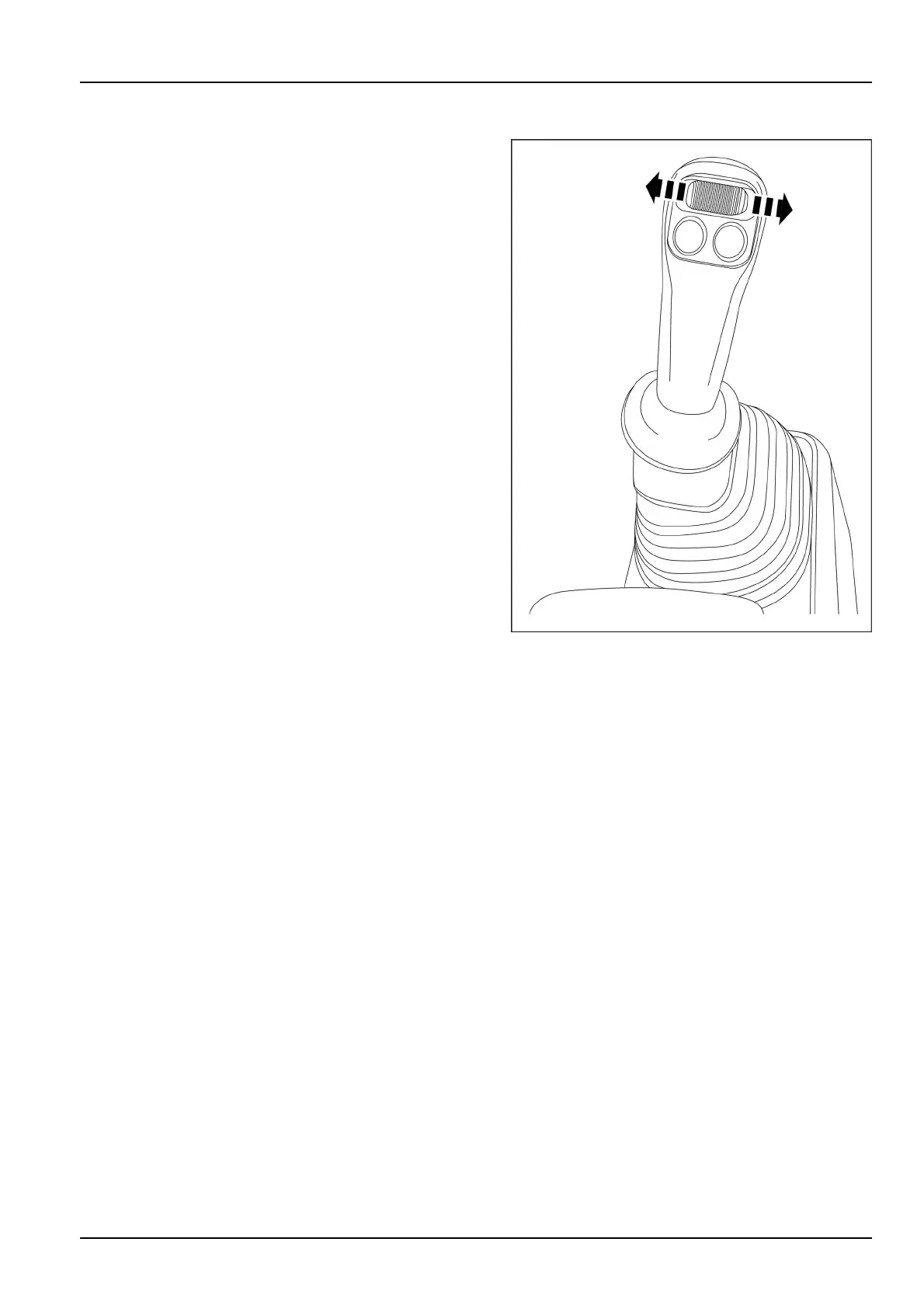

Theproportionalswitchontheleft-handcontrollever

istheconventionalcontrolforthesecondauxiliary

hydrauliccircuit.

Iftheproportionalswitchontheleft-handcontrollever

isequippedyoucanoperatetheproportionalswitchas

follows:

•

Left-handswitching:Counterclockwiserotation

•

Right-handswitching:Clockwiserotation

SMIL16MEX1498BA14

9-17
