Connecting the ClassPad to Another Device
Connecting to an EA-200 Data Analyzer
You can use the CASIO Data Analyzer to sample and collect data on various everyday
natural phenomena. You can also connect the Data Analyzer to your ClassPad, and control
Data Analyzer operation from your ClassPad. You can transfer setup information from the
ClassPad to the Data Analyzer, trigger sampling from the ClassPad, and graph sample
results on your ClassPad.
k Required Hardware
ClassPad: 1 unit
EA-200 Data Analyzer: 1
Special SB-62 Cable: 1
u ClassPad Operation

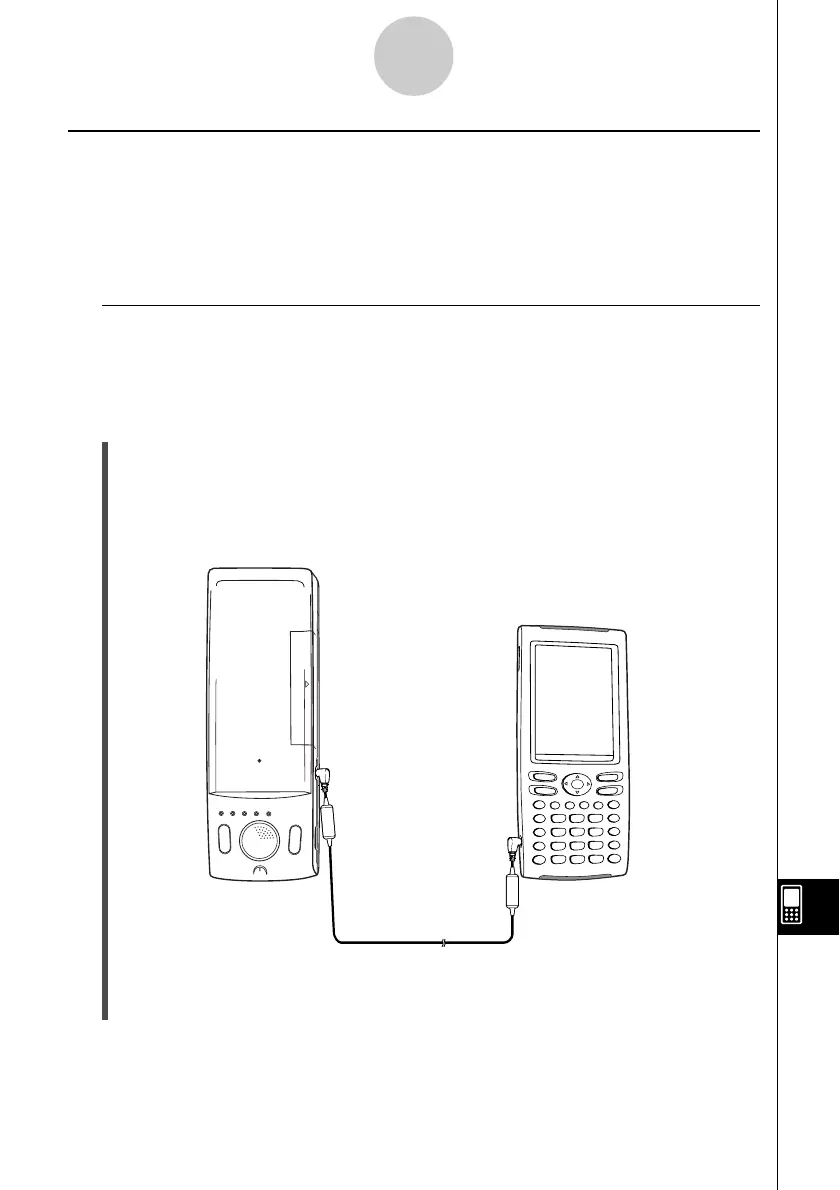

(1) Turn off the ClassPad and Data Analyzer.
(2) Remove the connector cover from the 3-pin communication port of the Data Analyzer,
and connect one end of the data communication cable to the port.
(3) Remove the connector cover from the 3-pin communication port of the ClassPad,
and connect the other end of the data communication cable to the port.
• For information about what you should do to transfer data, see the user
documentation that comes with the Data Analyzer.
Tip
• Be sure that you do not misplace or lose the connector covers.
• To protect against dirt, dust, and static electricity, be sure to replace the connector covers
whenever the cable is not connected.
