RX DC X-RAY UNIT
3.4 Wiring connection between central control unit and generator light
This connection enables the generator ready located outside the surgery to be turned on.
To connect the LP generator light (e) to the central control unit (c), use 2 conductors having a cross-section of 0.5 mm
(see section "Wall-mounted plate wiring connections").
LP light supply: 230V - 3x2.5 mm line.

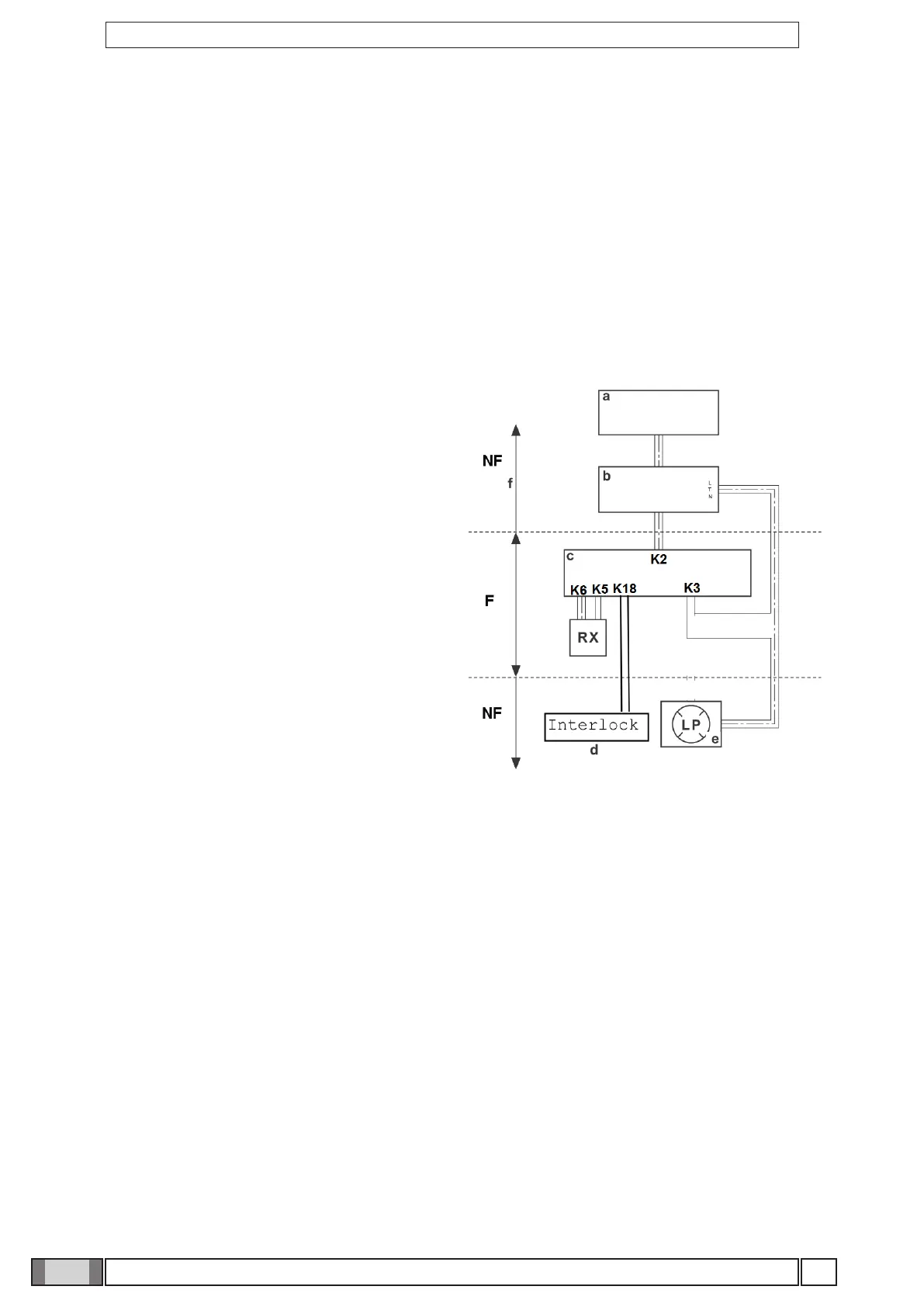

Legenda:
a) SUPPLY LINE
b) CIRCUIT BREAKER 10 A
c) CENTRAL CONTROL UNIT
d) INTERLOCK
e) SIGNALLING LAMP
