INSTALLATION
RX DC X-RAY UNIT

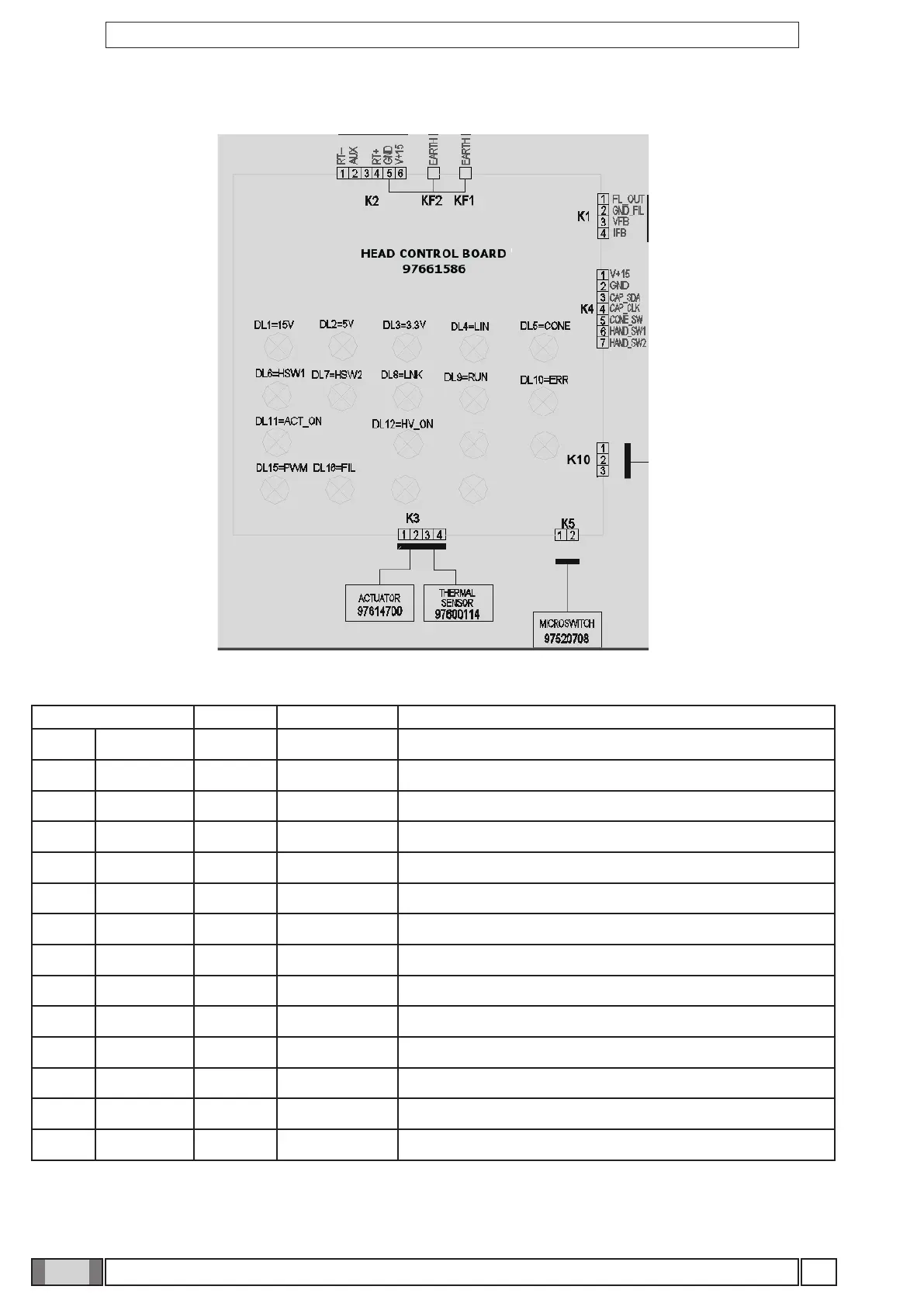

9.2 Basic X-ray head control card (Code 97661586)
Diagnostic Led indicators
LED Colour Status Description
DL1 15V Green On It indicates presence of external power supply (from base)
DL2 5V Green On It indicates 5V power supply on
DL3 3,3V Green On It indicates 3.3V power supply on
DL4 LIN Green It ashes for every LIN transmission (communication OK)
DL5 CONE Green On with no external collimator
DL6 HSW1 Green On when the RH touch screen is active
DL7 HSW2 Green On when the LH touch screen is active
DL8 LNK Green On when network is created
DL9 RUN Yellow Flashing It indicates proper operation of the CPU
DL10 ERR Red O󰀨 On with X-ray head error condition
DL11 ACT_ON Yellow On when actuator is powered
DL12 HV_ON Yellow When on, it indicates 46V voltage present on capacitor bench
DL15 PWM Yellow On It indicates PWM control from the head (in ready o in X-Ray ON)
DL16 FIL Green On It indicates PWM control from the head (in ready o in X-Ray ON)
