INSTALLATION
RX DC X-RAY UNIT
Figure A Figure B

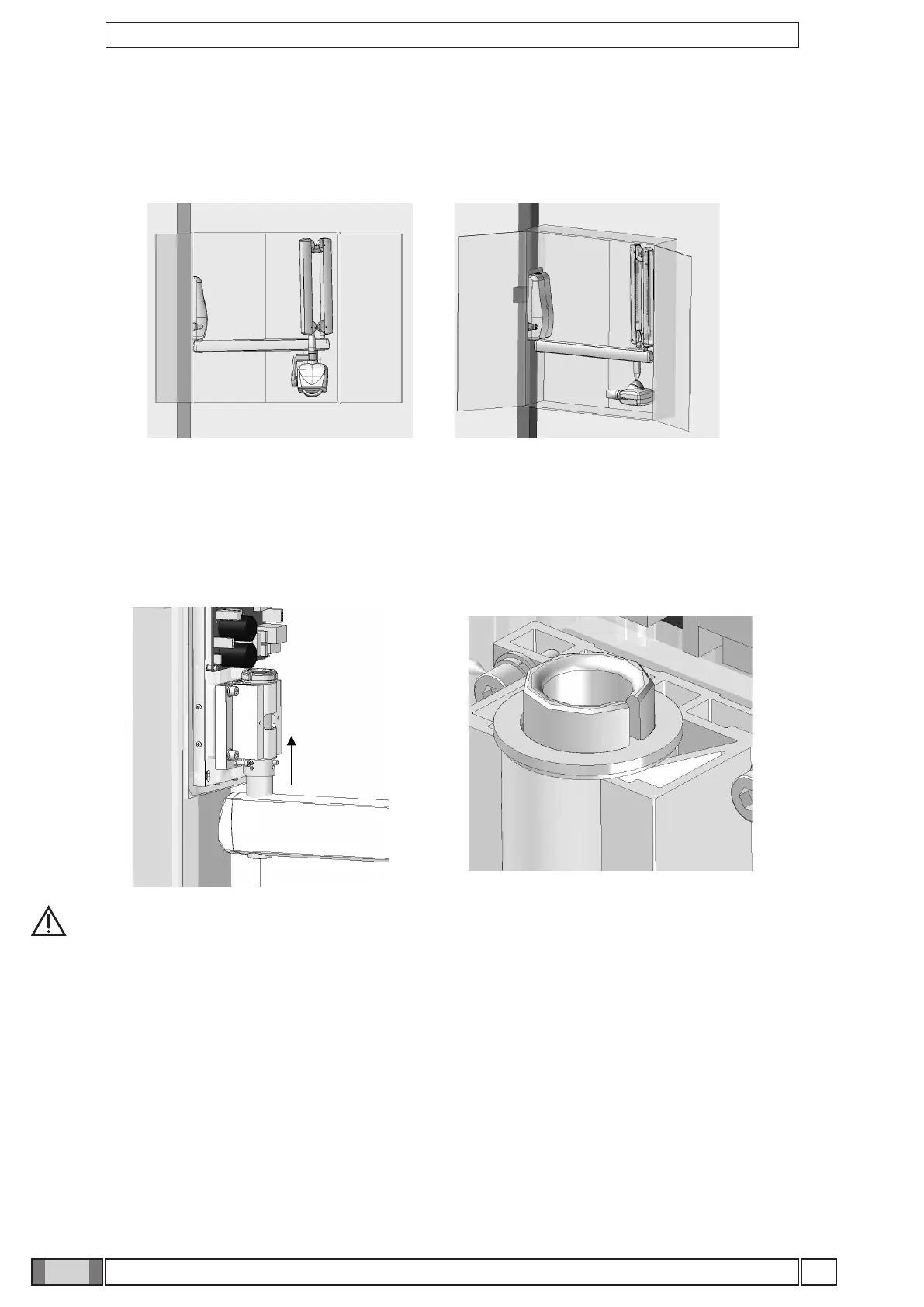

4.3.1 PASS THROUGH installation extension arm
Install inside cabinet model PXTG92 42.5'' x 49''
WARNING!
After installation of the PASS THROUGH arm, ensure that there is no clearance and that horizontal arm has no
end oat.
Install the clutch (a) as directed in section "Extension arm" gure (B) .
Switch at top h=191cm
Check the direction of the pin support: it should be set as shown in gure (A) for this type of installation.
Insert the extension arm pin in the hole in the wall-mounting plate from below. Place the washer supplied on top of
the pin and forcefully tighten the ring nut with the pin spanner provided, as shown in the gure (B).
