INSTALLATION
RX DC X-RAY UNIT

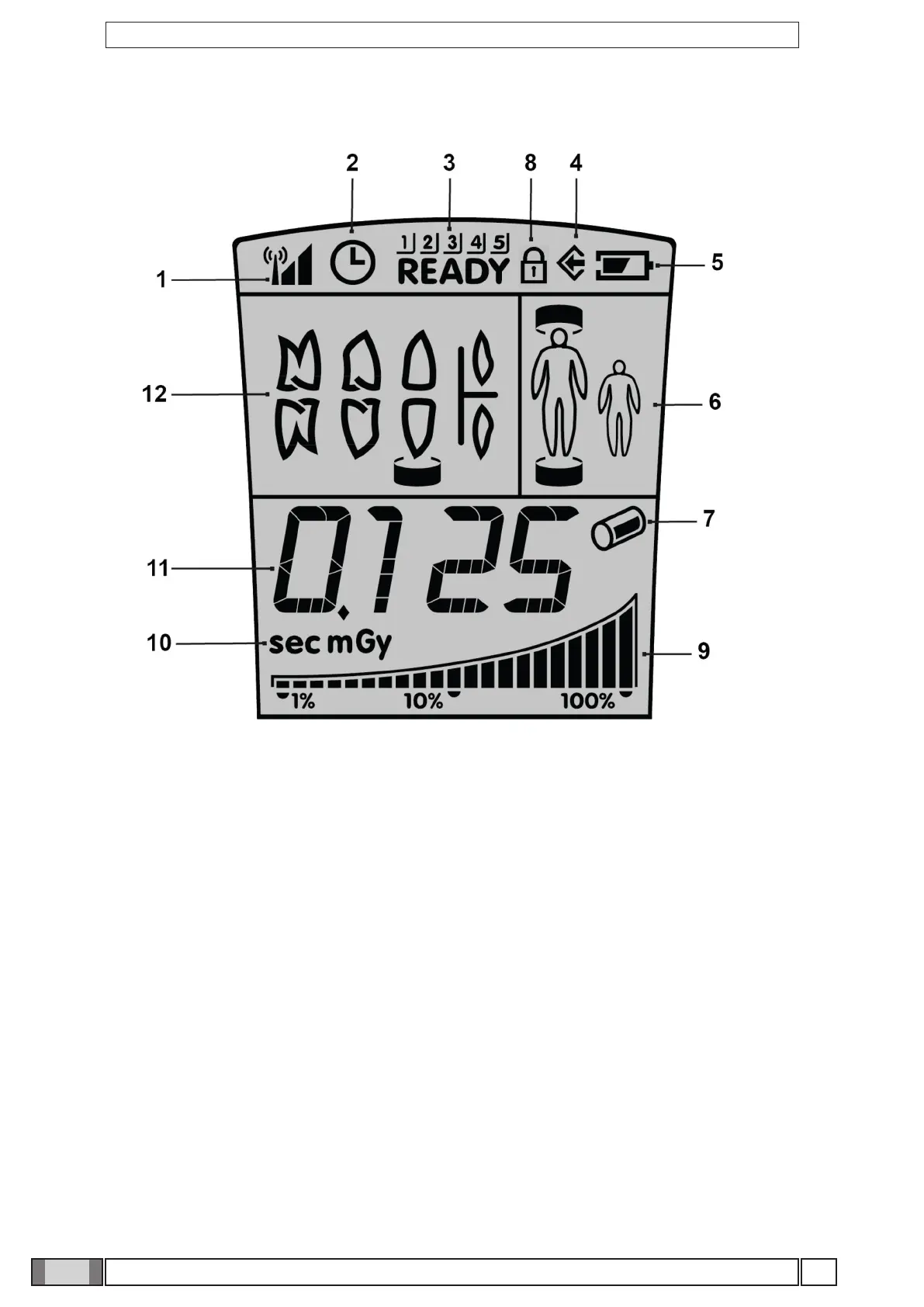

6.3 Handheld display functions
1 Field present for dialoguing with “base”
2 Pause for cooling
3 Handheld identication number
4 Memorising
5 Battery status
6 Patient size selection
7 8” round collimator on (12” rectangular collimator not attached)
8 Interlock active
9 Graduated bar for thermal load
10 Time/dose unit of measure
11 Exposure time and dose display
12 Tooth selection
