INSTALLATION
RX DC X-RAY UNIT
7.3 Setting the type of movable collimator
The RX DC x-ray unit has the following removable cones:
• Rectangular 35x45 mm (only RX DC with "ball end socket joint")
• Round Ø55 mm
• Rectangular 31x41 mm (to be attached to the Ø55 mm round cone)
• Rectangular 22x35 mm (to be attached to the Ø55 mm round cone)
It is possible to select the collimator through the P07 menu.
NOTE: in order to obtain top performance of the x-ray unit, set the cone according to the type used.
7.4 Calibrating the X-ray head
This operation requires the execution of a certain number of shots, at a pre-set time, during which X-ray emis-
sion occurs. It is therefore necessary to pay close attention.

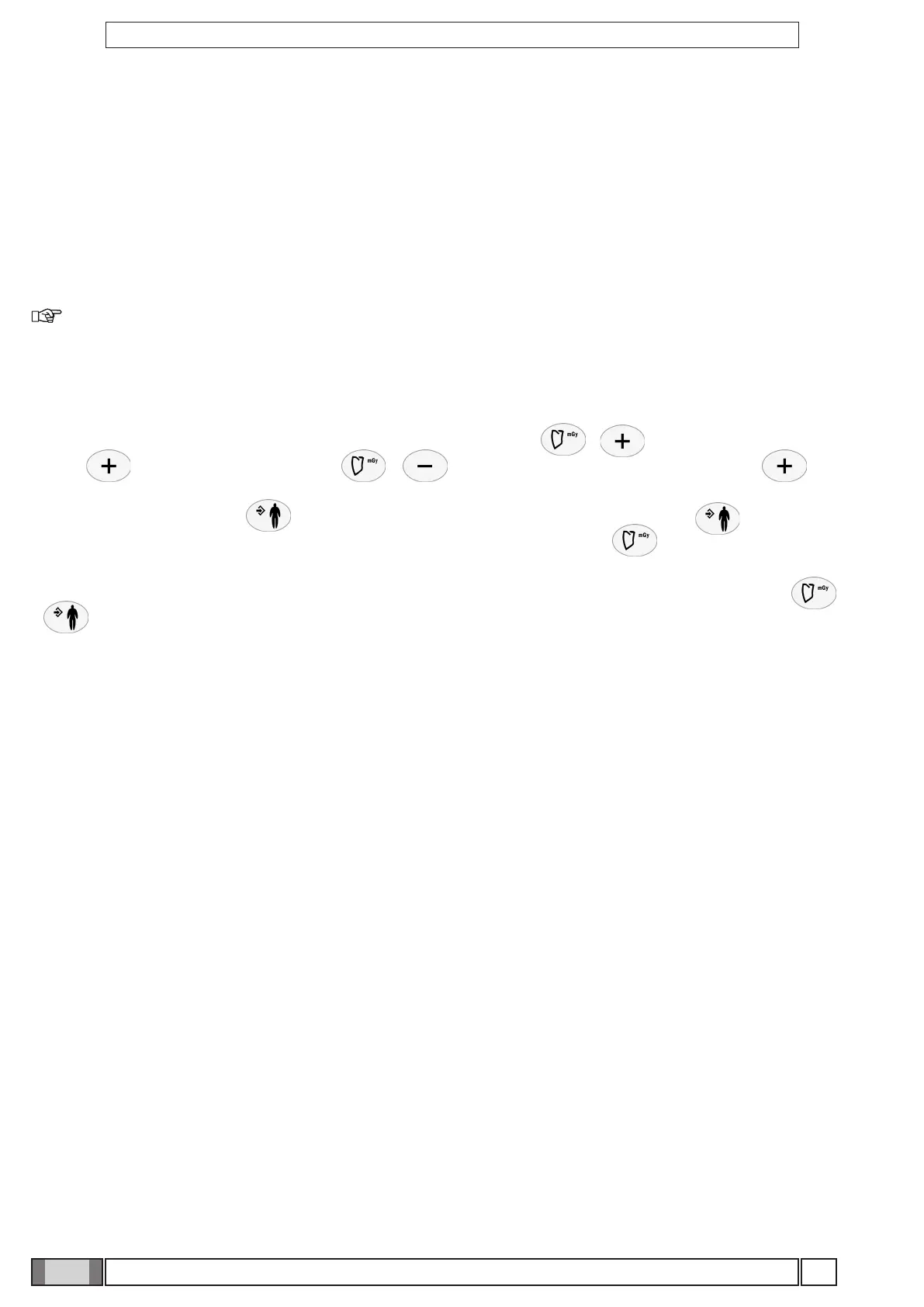

Switch on the handheld unit and go to menu T05. To access this menu press + keys, scroll the menu using
the key until P08 is displayed, press + to access the technical menu and press the key
several times until T05 is displayed, to enter the menu and press again and hold the key to activate the
calibration. press the key to enter the menu and press again and hold the key to acti-
vate the calibration. Perform the shots until the counter reaches 0. Press the key to quit the menu. Be
careful never to release the shot key in advance as, in case of error, it could be necessary to repeat the operation.
Press simultaneously + keys from T05 to set the use of the default calibration values.Press simultaneously
+ keys from T05 to set the use of the default calibration values.
