6
GB
INSTALLATION
RX DC X-RAY UNIT
2.2 Handling and storage

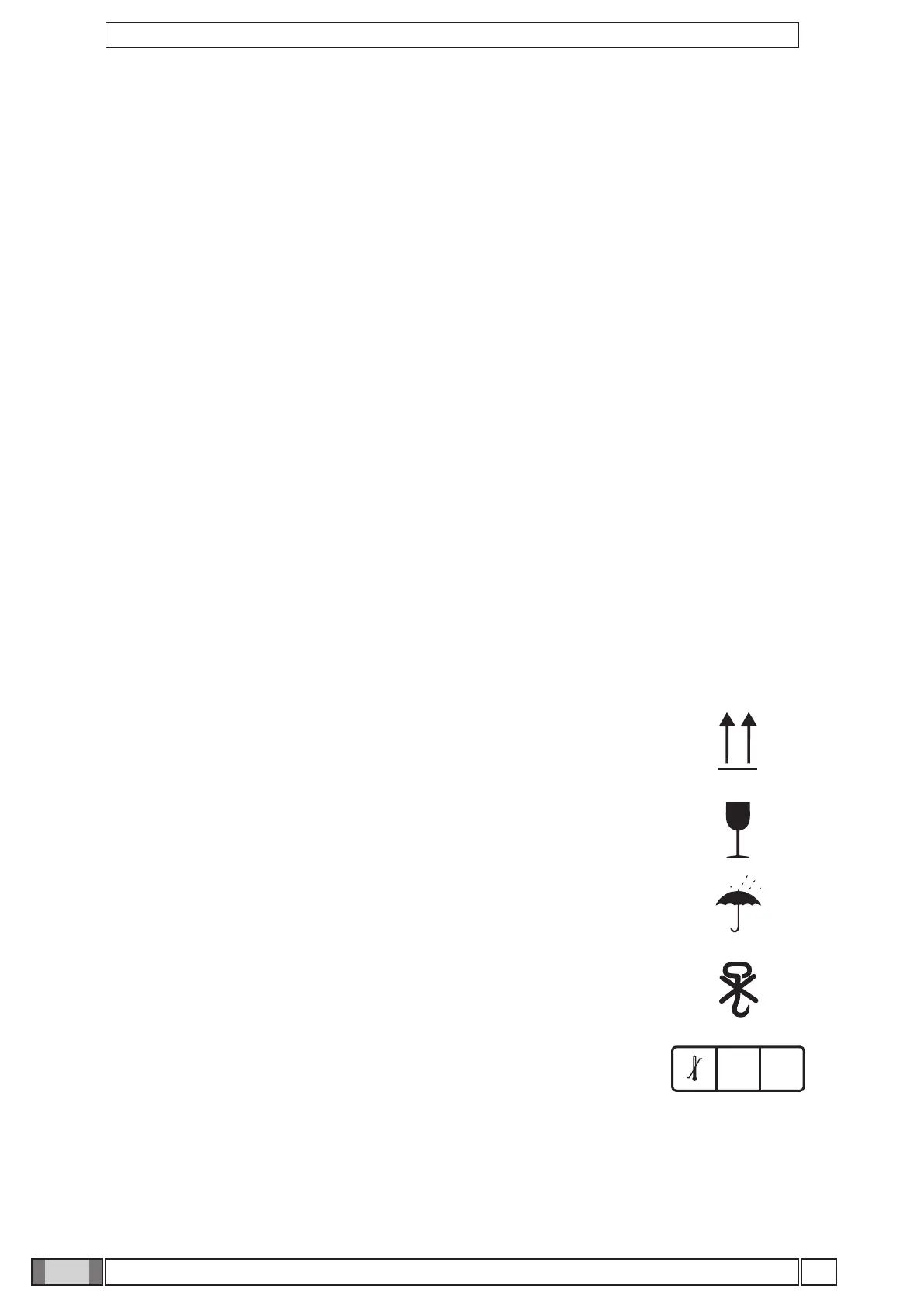

Indications regarding storage, handling and unpacking are given on the outside of the cardboard packaging.
These indications must be strictly observed.
1) The package must be kept upright in the direction indicated by the arrows at all times
during handling and storage.
2) Avoid banging the package.
3) Keep the package free from damp.
4) Do not use hooks to handle the package.
5) A nameplate indicates the required ambient conditions for storage.
a) temperature from -15° to 50° C.
b) relative humidity from 10 to 90%
c) atmospheric pressure from 500 to 1060 hPa.
MOBILE STAND INSTALLATION
• N° 2 PACKAGES Dimensions: 103x53x36 cm
• 1
ST
PACKAGE Weight: 38 kg
• Contents 1ST PACKAGE:
- Documentation and guarantee
- Disposable jig for installation
- Kit
- Wall back-plate (if requested)
- Wall-mounted plate
- Generator
- Tube
- Extension
- Collimator
- Double pantograph arm
• 2
ND
PACKAGE WEIGHT: 30KG
• CONTENTS 2ND PACKAGE:
- Trolley mechanical parts
- general kit bag
2. PACKAGING
2.1 Dimensions and contents
WALL MOUNTED VERSION
• 1 PACKAGE Dimensions: 103x53x36 cm
• Weight: 38 kg
• Contents:
- Documentation and guarantee
- Disposable jig for installation
- Kit
- Wall back-plate (if requested)
- Wall-mounted plate
- Generator
- Tube
- Extension
- Collimator:
x Round collimator if eXTend version
x Round + rectangular collimator if HyperSphere
version
- Double pantograph arm
