CEFLA RX DC - ACTUATOR UNIT ADJUSTMENT

37
1
B = mm 1,6
A = mm 2,7
2
3
4
5
A = mm 2,7
B = mm 1,6
GB
INSTALLATION
RX DC X-RAY UNIT

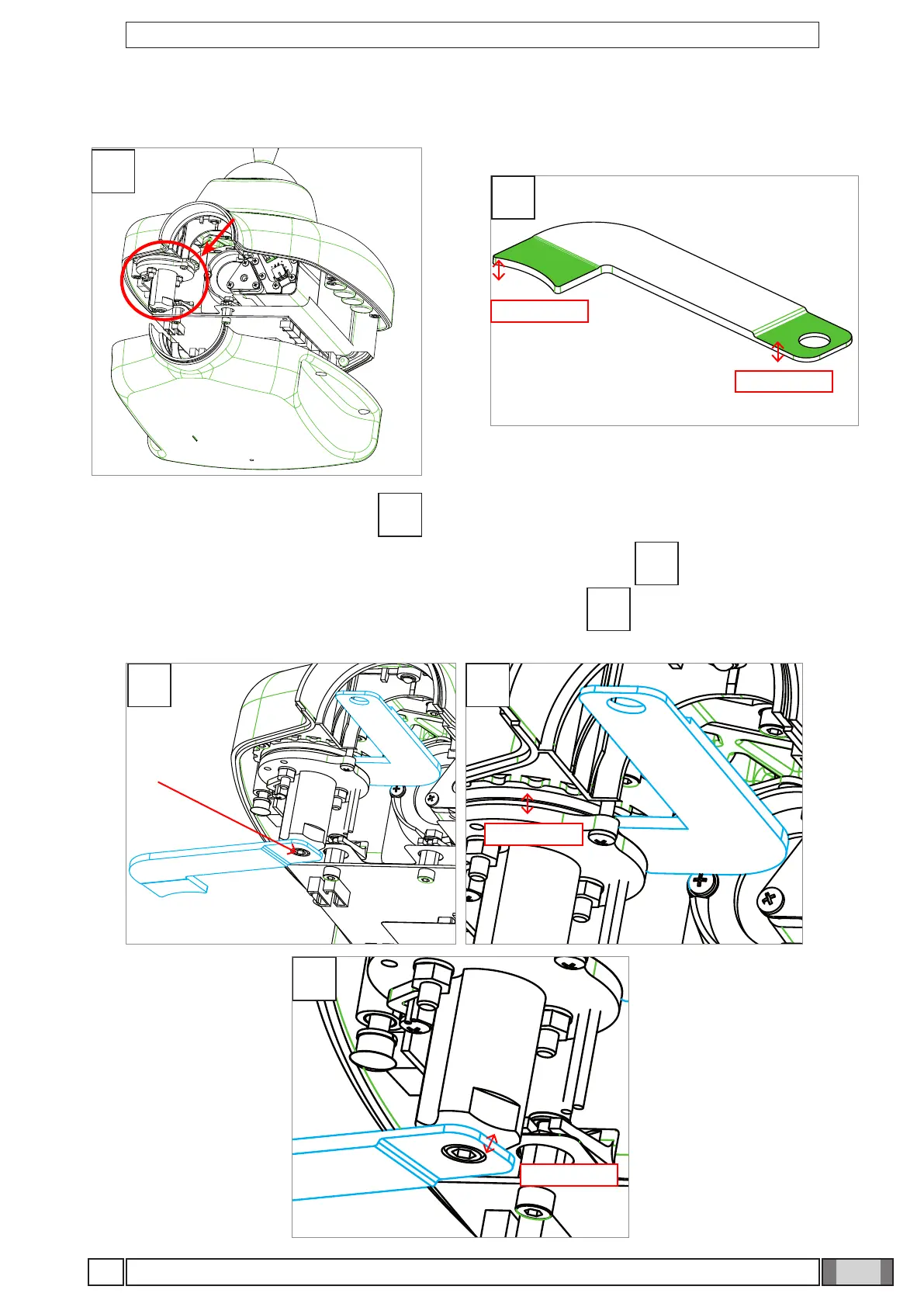

8. ADJUSTING THE ACTUATOR UNIT (ONLY RX DC WITH "BALL END SOCKET JOINT")
ACCOMPANYING DEVICE
FOR ADJUSTING THE ACTUATOR UNIT
A. Loosen the grub screw shown in gure to release the brake.
B. Position the device for adjusting the actuator unit in the gap shown in picture
4
to verify that the gap is 2.7mm
C. Position the device for adjusting the actuator unit as shown in picture
5
and verify that the grub screw is ush
with the surface of the template
3
