A = mm 2,7
GB
INSTALLATION
RX DC X-RAY UNIT

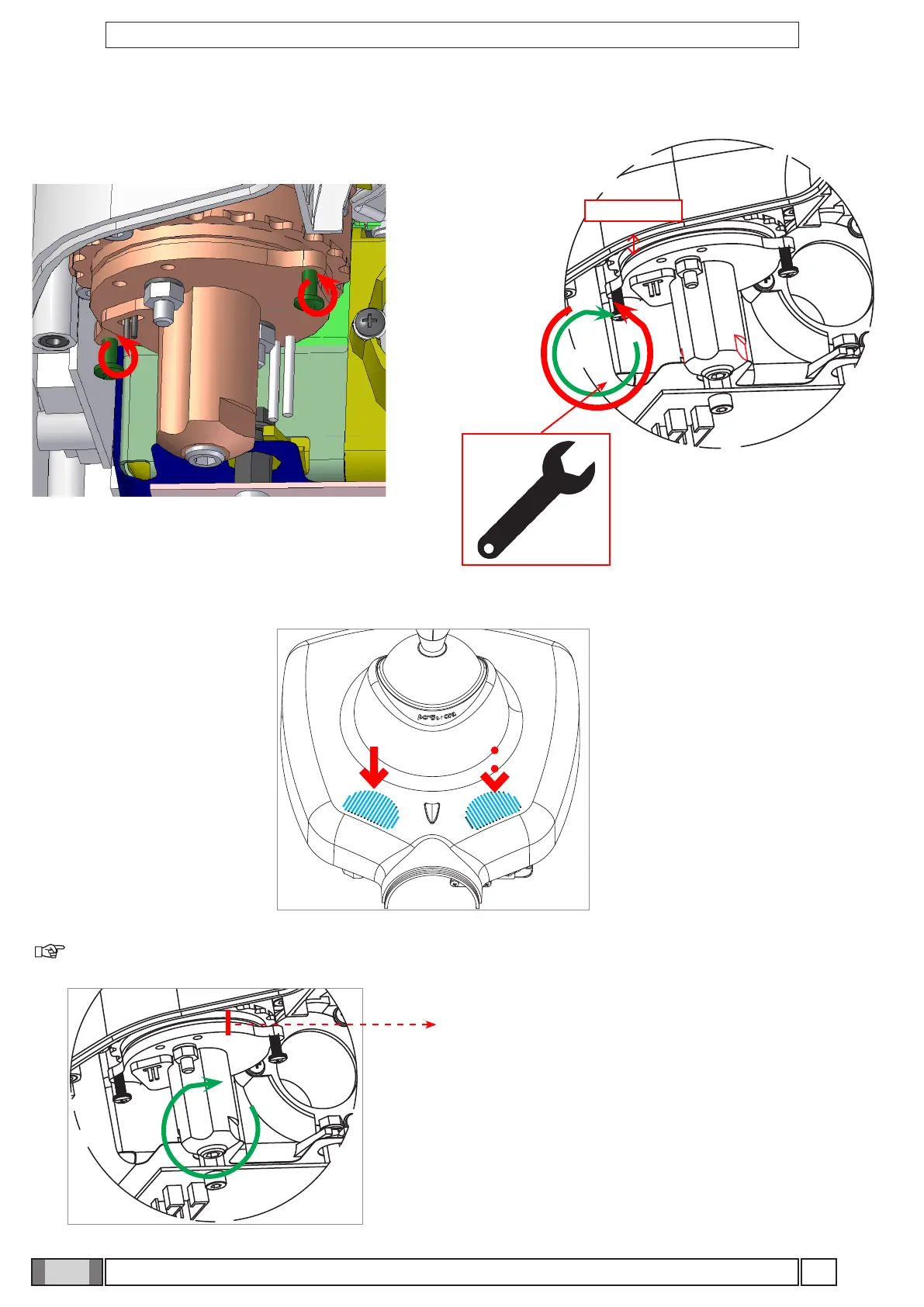

If the conditions above are not true, adjust the plastic ring and grub screw as shown here below:
Verify if the brake mechanism operates normally after having performed the adjustment
If the head is not steady in all angles, proceed with further adjustment as shown below
NOTE: don't change the position of the grub screw that was set in phase 3-4-5
Draw a reference mark on the two plastic rings and
rotate clockwise by 180°
